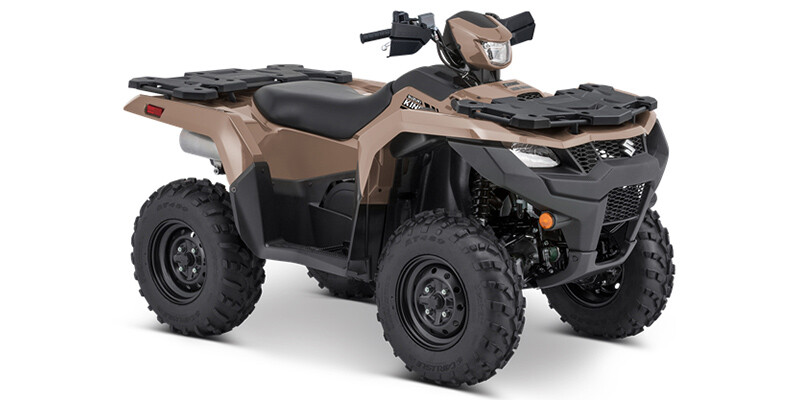

2026 KingQuad 500AXi Power Steering

Specifications

• ENGINE

  add remove
  • Engine Type
    Single-Cylinder
  • Cylinders
    1
  • Engine Stroke
    4-Stroke
  • Cooling
    Liquid
  • Valves
    4
  • Valves Per Cylinder
    4
  • Valve Configuration
    SOHC
  • Bore (in)
    3.4
  • Stroke (in)
    3.2
  • Displacement (cc)
    493
  • Fuel Type
    Gas
  • Fuel Injector
    Yes
  • Carburetor
    No
  • Carburetion Type
    Fuel Injected
  • Kill Switch / Tether Cord
    Not Available
  • Engine Block Heater
    Not Available
  • Snorkel Air Intake
    Standard
  • Starter
    Electric
  • Compression ratio
    9.9:1
• TRANSMISSION

  add remove
  • Transmission Type
    Continuously Variable (CVT)
  • Hi / Low Range
    Yes
  • Primary Drive (Rear Wheel)
    Shaft
  • Reverse
    Yes
  • Primary Drive (Engine / Transmission)
    Belt
  • Transmission Brand
    Quadmatic™
  • Primary Drive (Front Wheel)
    Shaft
• DRIVE LINE

  add remove
  • Driveline Type
    Selectable 4X2 / 4X4
  • Number Of Driveline Modes
    3
  • Rear Unlocking Differential
    No
  • Rear Solid Axle
    No
  • Limited Slip Differential
    Standard
  • Differential Lock
    Standard
  • Limited Slip Differential Location
    Front
  • Differential Lock Location
    Front
• TECHNICAL SPECIFICATIONS

  add remove
  • Width (in)
    47.8
  • Height (in)
    50.6
  • Wheelbase (in)
    50.6
  • Ground Clearance (in)
    10.2
  • Fuel Capacity (gal)
    4.6
  • Towing Capacity (lbs)
    1322
  • Storage Capacity (gal)
    0.6
  • Wet Weight (lbs)
    714
• SUSPENSION

  add remove
  • Front Suspension Type
    Independent Double A-Arm
  • Front Travel (in)
    6.7
  • Front Adjustable Fork Pre-Load
    Yes
  • Front Adjustable Rebound Damping
    No
  • Front Central Suspension Strut
    No
  • Rear Suspension Type
    Independent Double A-Arm
  • Rear Travel (in)
    7.7
  • Rear Adjustable Shock / Spring Pre-Load
    Yes
  • Rear Adjustable Rebound Damping
    No
  • Number Rear Shock Absorbers
    2
  • Front Stabilizer Bar
    No
  • Rear Stabilizer Bar
    Yes
  • Steering Damper
    No
  • Air Adjustable
    No
• WHEELS & TIRES

  add remove
  • Wheels Composition
    Steel
  • Front Tire (Full Spec)
    Carlisle AT 25 X 8-12
  • Rear Tire (Full Spec)
    Carlisle AT 25 X 10-12
  • Spare Tire
    Not Available
  • Tube / Tubeless
    Tubeless
  • Chromed
    No
  • Tire Chains
    Not Available
• BRAKES

  add remove
  • Front Brake Type
    Dual Hydraulic Disc
  • Rear Brake Type
    Sealed Oil Bath Multi-Disc
  • Anti-Lock Brakes
    Not Available
  • Linked Brake System Front to Rear
    Not Available
  • Engine Braking Brand Name
    Engine Braking System
• TOWING & HAULING

  add remove
  • Front Hitch
    Not Available
  • Rear Hitch
    Standard
  • Trailer
    Not Available
  • Winch
    Optional
  • Roller Fairlead
    Optional
  • Rear Hitch Type
    Receiver
• SEATS

  add remove
  • Seat Type
    One-Piece
  • Seat Location
    Driver
  • Seat Material
    Vinyl
  • Seat Height (in)
    36.2
  • Number Of Seats
    1
  • Detachable Passenger Seat
    Not Available
  • Grab Rail or Strap
    Not Available
• Colour options

  add remove
  • Desert Beige
  • Terra Green
  • Flame Red
