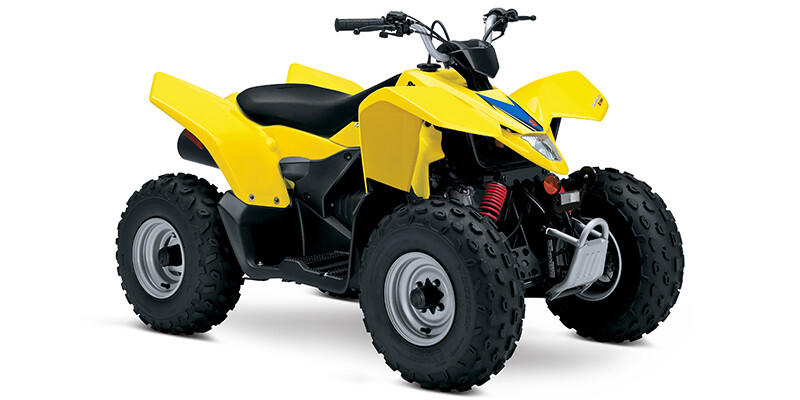

2025 QuadSport^® Z90

Specifications

• ENGINE

  add remove
  • Engine Type
    Single-Cylinder
  • Cylinders
    1
  • Engine Stroke
    4-Stroke
  • Cooling
    Air
  • Valve Configuration
    SOHC
  • Bore (in)
    1.79
  • Stroke (in)
    2.17
  • Displacement (cc)
    90
  • Fuel Type
    Gas
  • Carburetion Brand
    Mikuni
  • Fuel Injector
    No
  • Carburetor
    Yes
  • Number Of Carburetors
    1
  • Carburetor Size (mm)
    16
  • Carburetion Type
    Carburetor
  • Kill Switch / Tether Cord
    Standard
  • Engine Block Heater
    Not Available
  • Snorkel Air Intake
    Not Available
  • Speed Governor
    Yes
  • Starter
    Electric / Pull
  • Compression ratio
    9.5:1
• TRANSMISSION

  add remove
  • Transmission Type
    Continuously Variable (CVT)
  • Overdrive
    No
  • Hi / Low Range
    No
  • Primary Drive (Rear Wheel)
    Chain
  • Reverse
    No
  • Primary Drive (Engine / Transmission)
    Belt
• DRIVE LINE

  add remove
  • Driveline Type
    4X2
  • Number Of Driveline Modes
    1
  • Rear Unlocking Differential
    No
  • Rear Solid Axle
    Yes
  • Limited Slip Differential
    Not Available
  • Differential Lock
    Not Available
• TECHNICAL SPECIFICATIONS

  add remove
  • Width (in)
    34.4
  • Height (in)
    36
  • Wheelbase (in)
    39.6
  • Ground Clearance (in)
    5.9
  • Fuel Capacity (gal)
    1.6
  • Wet Weight (lbs)
    280
• SUSPENSION

  add remove
  • Front Suspension Type
    Independent A-Arm
  • Front Adjustable Fork Pre-Load
    No
  • Front Adjustable Rebound Damping
    No
  • Front Central Suspension Strut
    No
  • Rear Suspension Type
    Swing Arm
  • Rear Suspension Material
    Steel
  • Rear Adjustable Shock / Spring Pre-Load
    No
  • Rear Adjustable Rebound Damping
    No
  • Number Rear Shock Absorbers
    1
  • Front Stabilizer Bar
    No
  • Rear Stabilizer Bar
    No
  • Steering Damper
    No
  • Air Adjustable
    No
• WHEELS & TIRES

  add remove
  • Wheels Composition
    Steel
  • Front Tire (Full Spec)
    Dunlop® AT 19 X 7-8
  • Rear Tire (Full Spec)
    Dunlop® AT 19 X 7-8
  • Spare Tire
    Not Available
  • Tube / Tubeless
    Tubeless
  • Chromed
    No
  • Tire Chains
    Not Available
• BRAKES

  add remove
  • Front Brake Type
    Dual Drum
  • Rear Brake Type
    Drum
  • Anti-Lock Brakes
    Not Available
  • Linked Brake System Front to Rear
    Not Available
• TOWING & HAULING

  add remove
  • Front Hitch
    Not Available
  • Rear Hitch
    Not Available
  • Trailer
    Not Available
  • Winch
    Not Available
  • Roller Fairlead
    Not Available
  • Tow Hook
    Not Available
• SEATS

  add remove
  • Seat Type
    One-Piece
  • Seat Location
    Driver
  • Seat Material
    Vinyl
  • Seat Height (in)
    25.6
  • Number Of Seats
    1
  • Detachable Passenger Seat
    Not Available
  • Grab Rail or Strap
    Not Available
• Colour options

  add remove
  • Championship Yellow No. 2
