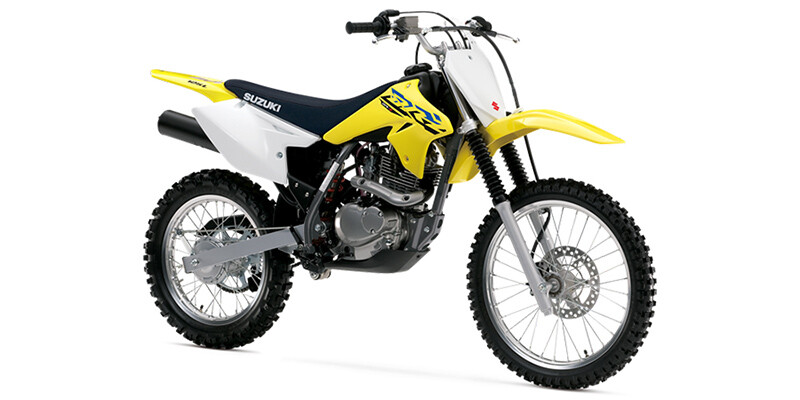

2026 DR-Z125L

2026 DR-Z125L

Specifications

  • ENGINE
    add remove
    • Engine Type
      Single-Cylinder
    • Cylinders
      1
    • Engine Stroke
      4-Stroke
    • Cooling
      Air
    • Valves
      2
    • Valves Per Cylinder
      2
    • Valve Configuration
      SOHC
    • Bore (in)
      2.25
    • Stroke (in)
      1.92
    • Displacement (cc)
      124
    • Carburetion Brand
      Mikuni
    • Fuel Injector
      No
    • Carburetor
      Yes
    • Number Of Carburetors
      1
    • Carburetion Type
      Carburetor
    • Compression Ratio
      9.5:1
  • TRANSMISSION
    add remove
    • Transmission Type
      Manual
    • Number Of Speeds
      5
    • Primary Drive (Rear Wheel)
      Chain
    • Reverse
      No
    • Overdrive
      Yes
    • Gear Ratio (1)
      3
    • Gear Ratio (2)
      1.857
    • Gear Ratio (3)
      1.368
    • Gear Ratio (4)
      1.095
    • Gear Ratio (5)
      0.923
    • Final Drive Ratio
      4.071
  • TECHNICAL SPECIFICATIONS
    add remove
    • Length (in)
      74.2
    • Width (in)
      30.3
    • Height (in)
      43.7
    • Wheelbase (in)
      50
    • Ground Clearance (in)
      11.4
    • Fuel Capacity (gal)
      1.3
    • Turning Radius (ft)
      6.6
    • Wet Weight (lbs)
      196
    • Fuel Capacity Reserve (gal)
      0.3
  • SUSPENSION
    add remove
    • Front Suspension Type
      Telescopic Fork
    • Front Adjustable Fork Pre-Load
      No
    • Front Adjustable Rebound Damping
      No
    • Front Central Suspension Strut
      No
    • Rear Suspension Type
      Twin Sided Swing Arm
    • Rear Adjustable Shock / Spring Pre-Load
      Yes
    • Rear Adjustable Rebound Damping
      No
    • Number Rear Shock Absorbers
      1
    • Rear Suspension Material
      Steel
    • Front Travel (in)
      7.1
    • Rear Travel (in)
      6.7
    • Air Adjustable
      No
  • WHEELS & TIRES
    add remove
    • Wheels Composition
      Aluminum
    • Chromed
      No
    • Tube / Tubeless
      Tubed
    • Front Tire (Full Spec)
      70/100 R19 42M
    • Rear Tire (Full Spec)
      90/100 R16 52M
    • Spare Tire
      Not Available
  • BRAKES
    add remove
    • Front Brake Type
      Hydraulic Disc
    • Rear Brake Type
      Drum
    • Anti-Lock Brakes
      Not Available
    • Linked Brake System Front to Rear
      Not Available
    • Front Brake Diameter (in)
      8.7
  • Colour options
    add remove
    • Champion Yellow No. 2
