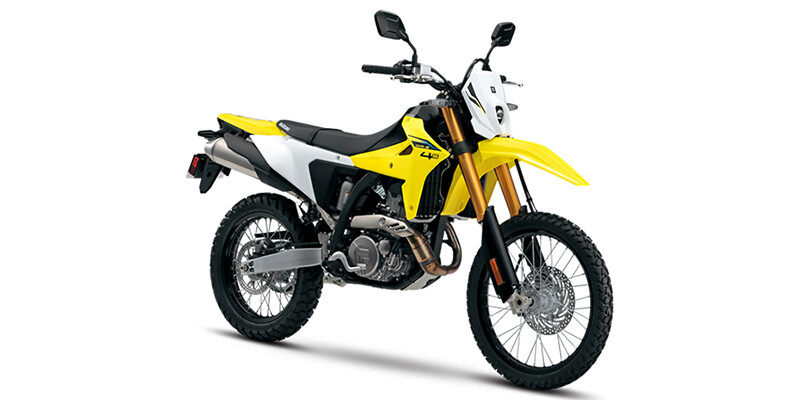

2026 DR-Z4S

Specifications

• ENGINE

  add remove
  • Engine Type
    Single-Cylinder
  • Cylinders
    1
  • Engine Stroke
    4-Stroke
  • Cooling
    Liquid / Air
  • Valves
    4
  • Valves Per Cylinder
    4
  • Valve Configuration
    DOHC
  • Bore (in)
    3.54
  • Stroke (in)
    2.47
  • Displacement (cc)
    398
  • Fuel Injector
    Yes
  • Carburetor
    No
  • Carburetion Type
    Fuel Injected
  • Compression Ratio
    11.1:1
• TRANSMISSION

  add remove
  • Transmission Type
    Manual
  • Number Of Speeds
    5
  • Primary Drive (Rear Wheel)
    Chain
  • Reverse
    No
  • Overdrive
    Yes
• TECHNICAL SPECIFICATIONS

  add remove
  • Length (in)
    89.4
  • Width (in)
    34.8
  • Height (in)
    48.4
  • Wheelbase (in)
    58.6
  • Ground Clearance (in)
    11.8
  • Fuel Capacity (gal)
    2.3
  • Wet Weight (lbs)
    333
• SUSPENSION

  add remove
  • Front Suspension Type
    Inverted Fork
  • Front Adjustable Rebound Damping
    Yes
  • Front Central Suspension Strut
    No
  • Rear Suspension Type
    Twin Sided Swing Arm
  • Rear Adjustable Shock / Spring Pre-Load
    Yes
  • Rear Adjustable Rebound Damping
    Yes
  • Number Rear Shock Absorbers
    1
  • Rear Suspension Material
    Aluminum
  • Front Travel (in)
    11
  • Rear Travel (in)
    11.6
  • Front Suspension Brand Name
    KYB
  • Steering Damper
    No
  • Air Adjustable
    No
  • Rear Suspension Brand Name
    KYB
• WHEELS & TIRES

  add remove
  • Wheels Composition
    Aluminum
  • Chromed
    No
  • Tube / Tubeless
    Tubed
  • Front Tire (Full Spec)
    IRC GP-410 80/100 R21 51P
  • Rear Tire (Full Spec)
    IRC GP-410 120/80 R18 62P
  • Spare Tire
    Not Available
• BRAKES

  add remove
  • Front Brake Type
    Hydraulic Disc
  • Rear Brake Type
    Hydraulic Disc
  • Anti-Lock Brakes
    Standard
  • Front Brake Diameter (in)
    10.6
  • Rear Brake Diameter (in)
    9.4
• Colour options

  add remove
  • Champion Yellow No.2 / Solid Special White No.2
  • Solid Iron Gray
