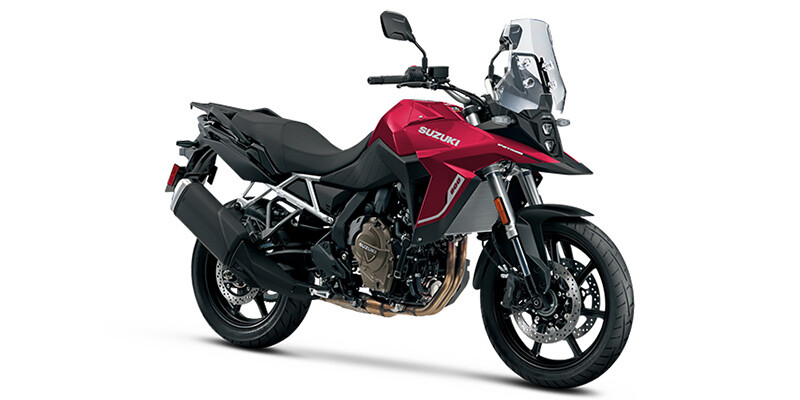

2025 V-Strom 800

Specifications

• ENGINE

  add remove
  • Engine Type
    Parallel Twin
  • Cylinders
    2
  • Engine Stroke
    4-Stroke
  • Cooling
    Liquid
  • Valve Configuration
    DOHC
  • Bore (in)
    3.31
  • Stroke (in)
    2.76
  • Displacement (cc)
    776
  • Fuel Injector
    Yes
  • Carburetor
    No
  • Carburetion Type
    Fuel Injected
  • Compression Ratio
    12.8:1
• TRANSMISSION

  add remove
  • Transmission Type
    Manual
  • Number Of Speeds
    6
  • Primary Drive (Rear Wheel)
    Chain
  • Reverse
    No
  • Primary Drive (Engine / Transmission)
    Gear
• TECHNICAL SPECIFICATIONS

  add remove
  • Length (in)
    88.8
  • Width (in)
    35.6
  • Height (in)
    53.3
  • Wheelbase (in)
    59.6
  • Ground Clearance (in)
    7.3
  • Fuel Capacity (gal)
    5.3
  • Wet Weight (lbs)
    492
• SUSPENSION

  add remove
  • Front Suspension Type
    Inverted Fork
  • Front Suspension Size (in)
    1.7
  • Front Adjustable Fork Pre-Load
    Yes
  • Front Adjustable Rebound Damping
    Yes
  • Front Central Suspension Strut
    No
  • Rear Suspension Type
    Twin Sided Swing Arm
  • Rear Adjustable Shock / Spring Pre-Load
    Yes
  • Rear Adjustable Rebound Damping
    Yes
  • Number Rear Shock Absorbers
    1
  • Rear Suspension Material
    Aluminum
  • Front Travel (in)
    5.9
  • Front Suspension Brand Name
    Showa® SFF-BP®
  • Steering Damper
    No
  • Air Adjustable
    No
  • Rear Suspension Brand Name
    Showa®
• WHEELS & TIRES

  add remove
  • Wheels Composition
    Aluminum
  • Chromed
    No
  • Tube / Tubeless
    Tubeless
  • Front Tire (Full Spec)
    Dunlop® D614F 110/80 R19 M/C 59V
  • Rear Tire (Full Spec)
    Dunlop® D614 150/70 R17 M/C 69V
  • Spare Tire
    Not Available
• BRAKES

  add remove
  • Front Brake Type
    Dual Hydraulic Disc
  • Rear Brake Type
    Hydraulic Disc
  • Anti-Lock Brakes
    Standard
  • Linked Brake System Front to Rear
    Standard
  • Front Brake Diameter (in)
    12.2
  • Rear Brake Diameter (in)
    10.2
  • Brake Brand Name
    Nissin
• Colour options

  add remove
  • Candy Daring Red
