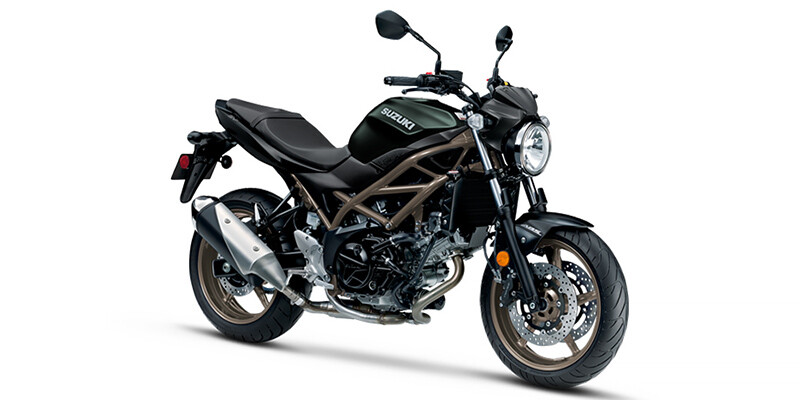

2025 SV650 ABS

Specifications

• ENGINE

  add remove
  • Engine Type
    V Twin
  • Cylinders
    2
  • Engine Stroke
    4-Stroke
  • Cooling
    Liquid
  • Valves
    8
  • Valves Per Cylinder
    4
  • Valve Configuration
    DOHC
  • Bore (in)
    3.19
  • Stroke (in)
    2.46
  • Displacement (cc)
    645
  • Fuel Injector
    Yes
  • Carburetor
    No
  • Carburetion Type
    Fuel Injected
  • Compression Ratio
    11.2:1
• TRANSMISSION

  add remove
  • Transmission Type
    Manual
  • Number Of Speeds
    6
  • Primary Drive (Rear Wheel)
    Chain
  • Reverse
    No
  • Overdrive
    Yes
  • Gear Ratio (1)
    2.461
  • Gear Ratio (2)
    1.777
  • Gear Ratio (3)
    1.38
  • Gear Ratio (4)
    1.125
  • Gear Ratio (5)
    0.961
  • Final Drive Ratio
    3.066
  • Gear Ratio (6)
    0.851
  • Primary Drive (Engine / Transmission)
    Gear
• TECHNICAL SPECIFICATIONS

  add remove
  • Length (in)
    84.3
  • Width (in)
    29.9
  • Height (in)
    42.9
  • Wheelbase (in)
    56.9
  • Ground Clearance (in)
    5.3
  • Fuel Capacity (gal)
    3.8
  • Wet Weight (lbs)
    437
• SUSPENSION

  add remove
  • Front Suspension Type
    Telescopic Fork
  • Front Suspension Size (in)
    1.6
  • Front Adjustable Fork Pre-Load
    Yes
  • Front Adjustable Rebound Damping
    No
  • Front Central Suspension Strut
    No
  • Rear Suspension Type
    Twin Sided Swing Arm
  • Rear Adjustable Shock / Spring Pre-Load
    Yes
  • Rear Adjustable Rebound Damping
    No
  • Number Rear Shock Absorbers
    1
  • Rear Suspension Material
    Steel
  • Front Travel (in)
    4.9
  • Steering Damper
    No
  • Air Adjustable
    No
  • Rear Suspension Size (in)
    2.5
• WHEELS & TIRES

  add remove
  • Wheels Composition
    Aluminum
  • Chromed
    No
  • Tube / Tubeless
    Tubeless
  • Front Tire (Full Spec)
    Dunlop® ROAD SMART III 120/70 ZR17 M/C 58W
  • Rear Tire (Full Spec)
    Dunlop® ROAD SMART III 160/60 ZR17 M/C 69W
  • Spare Tire
    Not Available
• BRAKES

  add remove
  • Front Brake Type
    Dual Hydraulic Disc
  • Rear Brake Type
    Hydraulic Disc
  • Anti-Lock Brakes
    Standard
  • Linked Brake System Front to Rear
    Standard
  • Front Brake Diameter (in)
    11.4
  • Rear Brake Diameter (in)
    9.4
• Colour options

  add remove
  • Pearl Matte Shadow Green / Metallic Matte Black No 2
