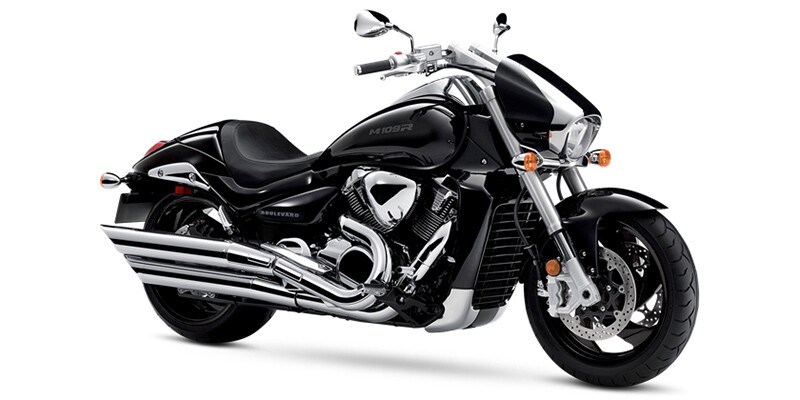

2025 Boulevard M109R

Specifications

• ENGINE

  add remove
  • Engine Type
    V Twin
  • Cylinders
    2
  • Engine Stroke
    4-Stroke
  • Cooling
    Liquid
  • Valves
    8
  • Valves Per Cylinder
    4
  • Valve Configuration
    DOHC
  • Bore (in)
    4.41
  • Stroke (in)
    3.56
  • Displacement (cc)
    1783
  • Fuel Injector
    Yes
  • Carburetor
    No
  • Carburetion Type
    Fuel Injected
  • Compression Ratio
    10.5:1
• TRANSMISSION

  add remove
  • Transmission Type
    Manual
  • Number Of Speeds
    5
  • Primary Drive (Rear Wheel)
    Shaft
  • Reverse
    No
  • Overdrive
    Yes
  • Gear Ratio (1)
    2.187
  • Gear Ratio (2)
    1.4
  • Gear Ratio (3)
    1.038
  • Gear Ratio (4)
    0.827
  • Gear Ratio (5)
    0.685
  • Final Drive Ratio
    2.823
  • Primary Drive (Engine / Transmission)
    Gear
• TECHNICAL SPECIFICATIONS

  add remove
  • Length (in)
    96.5
  • Width (in)
    34.4
  • Height (in)
    44.5
  • Wheelbase (in)
    67.3
  • Ground Clearance (in)
    5.1
  • Fuel Capacity (gal)
    5.2
  • Turning Radius (ft)
    10.8
  • Wet Weight (lbs)
    764
• SUSPENSION

  add remove
  • Front Suspension Type
    Inverted Fork
  • Front Suspension Size (in)
    1.8
  • Front Adjustable Fork Pre-Load
    No
  • Front Adjustable Rebound Damping
    No
  • Front Central Suspension Strut
    No
  • Rear Suspension Type
    Twin Sided Swing Arm
  • Rear Adjustable Shock / Spring Pre-Load
    Yes
  • Rear Adjustable Rebound Damping
    No
  • Number Rear Shock Absorbers
    1
  • Rear Suspension Material
    Aluminum
  • Front Travel (in)
    5.1
  • Rear Travel (in)
    4.6
  • Steering Damper
    No
  • Air Adjustable
    No
• WHEELS & TIRES

  add remove
  • Wheels Composition
    Aluminum
  • Chromed
    No
  • Tube / Tubeless
    Tubeless
  • Front Tire (Full Spec)
    Dunlop® 130/70 R18 M/C 63V
  • Rear Tire (Full Spec)
    Dunlop® 240/40 R18 M/C 79V
  • Spare Tire
    Not Available
• BRAKES

  add remove
  • Front Brake Type
    Dual Hydraulic Disc
  • Rear Brake Type
    Hydraulic Disc
  • Anti-Lock Brakes
    Not Available
  • Linked Brake System Front to Rear
    Not Available
  • Front Brake Diameter (in)
    12.2
  • Rear Brake Diameter (in)
    10.8
• Colour options

  add remove
  • Glass Sparkle Black
