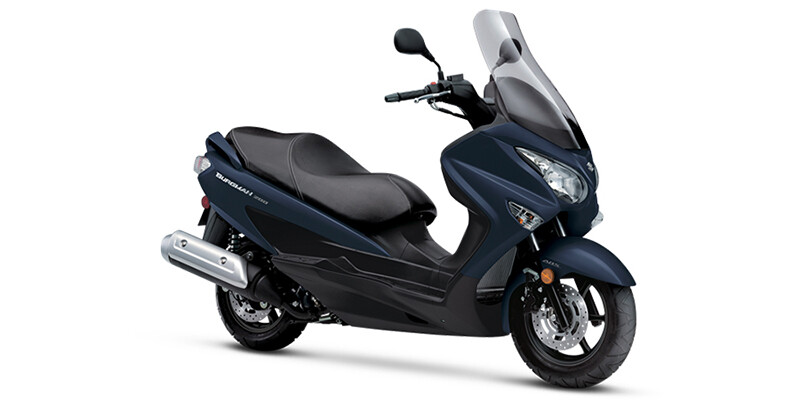

2022 Burgman 200

Specifications

• ENGINE

  add remove
  • Engine Type
    Single-Cylinder
  • Cylinders
    1
  • Engine Stroke
    4-Stroke
  • Cooling
    Liquid
  • Valves
    4
  • Valves Per Cylinder
    4
  • Valve Configuration
    SOHC
  • Bore (in)
    2.72
  • Stroke (in)
    2.1
  • Displacement (cc)
    200
  • Fuel Injector
    Yes
  • Carburetor
    No
  • Carburetion Type
    Fuel Injected
  • Compression Ratio
    11:1
• TRANSMISSION

  add remove
  • Transmission Type
    Continuously Variable (CVT)
  • Reverse
    No
  • Final Drive Ratio
    8.038
  • Primary Drive (Engine / Transmission)
    Belt
• TECHNICAL SPECIFICATIONS

  add remove
  • Length (in)
    80.9
  • Width (in)
    29.1
  • Height (in)
    53.3
  • Wheelbase (in)
    57.7
  • Ground Clearance (in)
    5.1
  • Fuel Capacity (gal)
    2.8
  • Turning Radius (ft)
    8.2
  • Wet Weight (lbs)
    359
• SUSPENSION

  add remove
  • Front Suspension Type
    Telescopic Fork
  • Front Suspension Size (in)
    1.3
  • Front Adjustable Fork Pre-Load
    No
  • Front Adjustable Rebound Damping
    No
  • Front Central Suspension Strut
    No
  • Rear Suspension Type
    Twin Sided Swing Arm
  • Rear Adjustable Shock / Spring Pre-Load
    Yes
  • Rear Adjustable Rebound Damping
    No
  • Number Rear Shock Absorbers
    2
  • Rear Suspension Material
    Steel
  • Front Travel (in)
    3.6
  • Rear Travel (in)
    3.3
  • Steering Damper
    No
  • Air Adjustable
    No
• WHEELS & TIRES

  add remove
  • Wheels Composition
    Aluminum
  • Chromed
    No
  • Tube / Tubeless
    Tubeless
  • Front Tire (Full Spec)
    Dunlop® Scootsmart G 110/90 R13 M/C 55P
  • Rear Tire (Full Spec)
    Dunlop® Scootsmart G 130/70 R12 M/C 62P
  • Spare Tire
    Not Available
• BRAKES

  add remove
  • Front Brake Type
    Hydraulic Disc
  • Rear Brake Type
    Hydraulic Disc
  • Anti-Lock Brakes
    Standard
  • Linked Brake System Front to Rear
    Standard
  • Front Brake Diameter (in)
    9.4
  • Rear Brake Diameter (in)
    9.4
• Colour options

  add remove
  • Metallic Matte Stellar Blue
