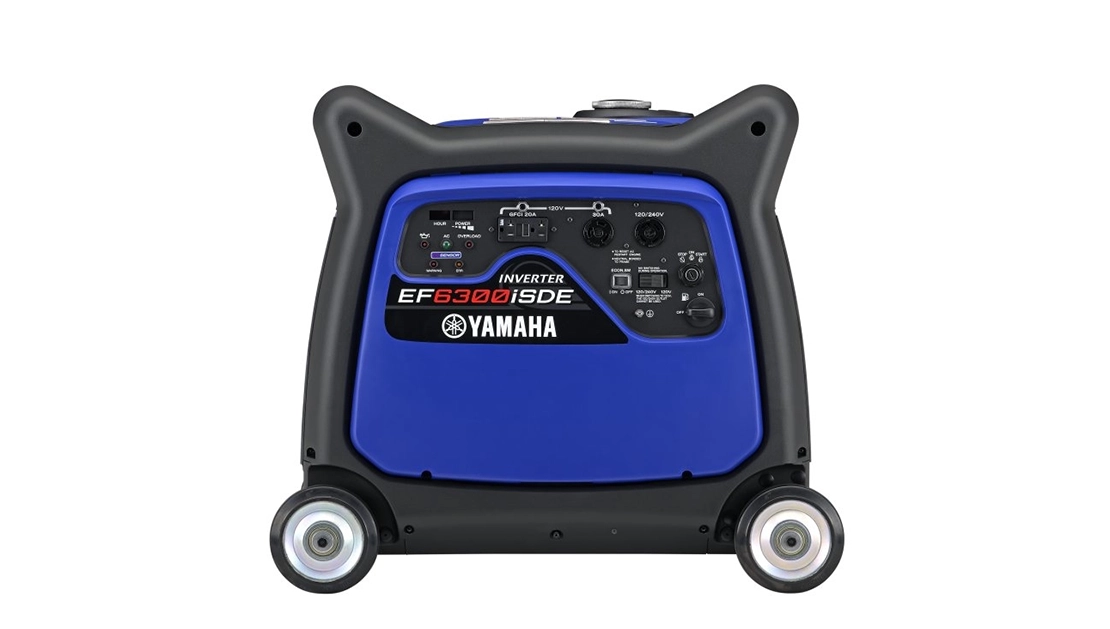

EF6300iSDE Inverter

Specifications

• ENGINE

  add remove
  • Engine Type
    Single-Cylinder
  • Engine Stroke
    4-Stroke
  • Valve Configuration
    OHV
  • Displacement (cc)
    357
  • AC Output Voltage (V)
    120/240
  • AC Output Maximum (watts)
    6300
  • AC Output Rated (watts)
    5500
  • Run Time Hours (% Load)
    13.3 (25%)
  • Noise Level Maximum dB(A)
    64
  • Noise Level dB(A) (% Load)
    58 (25%)
  • Engine Model Code
    MZ360
  • Engine Brand Name
    Yamaha
• TECHNICAL SPECIFICATIONS

  add remove
  • Length (in)
    30.7
  • Width (in)
    24.3
  • Height (in)
    27.2
  • Dry Weight (lbs)
    216
  • Fuel Capacity (gal)
    4.5
• INSTRUMENTATION

  add remove
  • Fuel Level Warning
    Not Available
  • Hour Meter
    Standard
  • Voltage Meter
    Not Available
  • Fuel Level Warning Type
    Gauge
• ELECTRICAL

  add remove
  • DC Outlet
    No
  • Number of 20A 120V (5-20R)
    2
  • Number of 30A 120V (5-30R)
    0
  • Number of 20A 120V (L5-20R)
    0
  • Number of 30A 120V (L5-30R)
    1
  • Number of 20A 120/240V (L14-20R)
    0
  • Number of 30A 120/240V (L14-30R)
    1
  • Number of 50A 120/240V (L14-50R)
    0
  • Number of 30A 120V (TT-30R)
    0
  • Number of 15A 120V (5-15R)
    0
  • Number of GFCI Outlets
    1
• Colour options

  add remove
  • Blue
