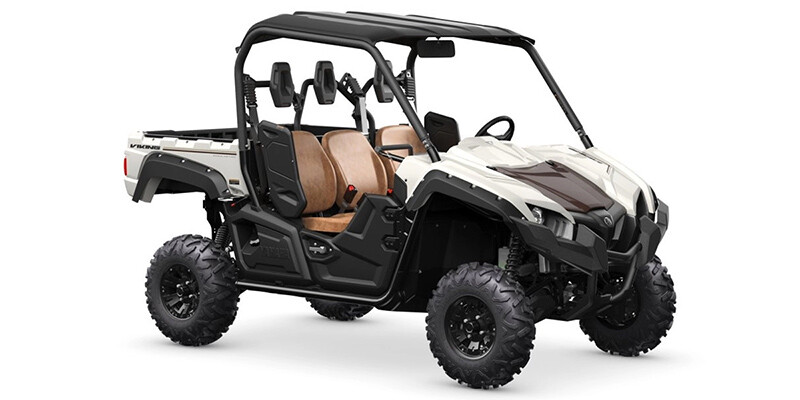

Viking EPS Ranch Edition

Specifications

• ENGINE

  add remove
  • Engine Type
    Single-Cylinder
  • Cylinders
    1
  • Engine Stroke
    4-Stroke
  • Cooling
    Liquid
  • Valve Configuration
    SOHC
  • Bore (in)
    4.02
  • Stroke (in)
    3.31
  • Displacement (cc)
    686
  • Carburetion Type
    Fuel Injected
  • Valves
    4
  • Valves Per Cylinder
    4
  • Compression ratio
    10.0:1
• TRANSMISSION

  add remove
  • Transmission Type
    Continuously Variable (CVT)
  • Primary Drive (Rear Wheel)
    Shaft
  • Primary Drive (Engine / Transmission)
    Belt
  • Reverse
    Yes
  • Transmission Brand
    UltraMatic™
  • Overdrive
    No
  • Hi / Low Range
    Yes
  • Primary Drive (Front Wheel)
    Shaft
• DRIVE LINE

  add remove
  • Driveline Type
    Selectable 4X2 / 4X4
  • Number Of Driveline Modes
    2
  • Rear Solid Axle
    No
  • Driveline Brand
    On-Command™
  • Rear Unlocking Differential
    No
  • Limited Slip Differential Location
    Front
  • Differential Lock Location
    Front
• TECHNICAL SPECIFICATIONS

  add remove
  • Width (in)
    64
  • Height (in)
    75.8
  • Wheelbase (in)
    84.1
  • Turning Radius (ft)
    14.8
  • Ground Clearance (in)
    11.8
  • Towing Capacity (lbs)
    1500
  • Fuel Capacity (gal)
    9.7
  • Engine Displacement to Weight (cc)
    0.46
  • Wet Weight (lbs)
    1486
• SUSPENSION

  add remove
  • Front Suspension Type
    Independent Double Wishbone
  • Front Adjustable Fork Pre-Load
    Yes
  • Rear Suspension Type
    Independent Double Wishbone
  • Center Suspension
    Not Available
  • Front Travel (in)
    8.1
  • Rear Travel (in)
    8.1
  • Rear Adjustable Shock / Spring Pre-Load
    Yes
  • Number Rear Shock Absorbers
    2
• WHEELS & TIRES

  add remove
  • Front Tire Diameter (in)
    25
  • Rear Tire Diameter (in)
    25
  • Front Tire (Full Spec)
    AT25 X 8-12
  • Rear Tire (Full Spec)
    AT25 X 10-12
  • Spare Tire
    Not Available
  • Wheels Composition
    Aluminum
  • Tread Type
    All Terrain
  • Tube / Tubeless
    Tubeless
• BRAKES

  add remove
  • Front Brake Type
    Dual Hydraulic Disc
  • Rear Brake Type
    Dual Hydraulic Disc
  • Anti-Lock Brakes
    Not Available
• Colour options

  add remove
  • Winter White
