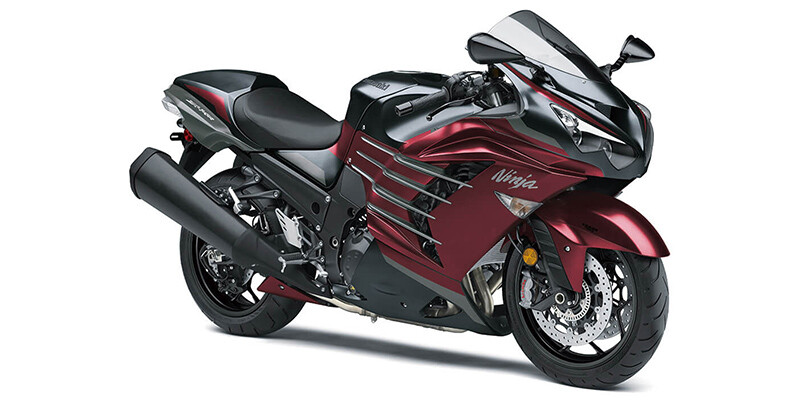

2025 Ninja^® ZX^™-14R ABS

Specifications

• ENGINE

  add remove
  • Engine Type
    Horizontal In-line
  • Cylinders
    4
  • Engine Stroke
    4-Stroke
  • Cooling
    Liquid
  • Valves
    16
  • Valves Per Cylinder
    4
  • Valve Configuration
    DOHC
  • Bore (in)
    3.3
  • Stroke (in)
    2.56
  • Displacement (cc)
    1441
  • Compression Ratio
    12.3:1
  • Carburetion Brand
    Mikuni
  • Carburetor
    No
  • Number Of Carburetors
    0
  • Carburetion Type
    Fuel Injected
  • Turbocharged
    No
  • Supercharged
    No
  • Torque (Ft Lbs)
    116.5
• TRANSMISSION

  add remove
  • Transmission Type
    Manual
  • Number Of Speeds
    6
  • Primary Drive (Rear Wheel)
    Chain
  • Reverse
    No
• TECHNICAL SPECIFICATIONS

  add remove
  • Length (in)
    85.4
  • Width (in)
    30.3
  • Height (in)
    46.1
  • Wheelbase (in)
    58.3
  • Ground Clearance (in)
    4.9
  • Wet Weight (lbs)
    593.1
  • Fuel Capacity (gal)
    5.8
• SUSPENSION

  add remove
  • Front Suspension Type
    Inverted Fork
  • Front Suspension Size (in)
    1.7
  • Front Travel (in)
    4.6
  • Front Adjustable Fork Pre-Load
    Yes
  • Front Adjustable Rebound Damping
    Yes
  • Front Central Suspension Strut
    No
  • Rear Suspension Brand Name
    UNI-TRAK®
  • Rear Suspension Type
    Twin Sided Swing Arm
  • Rear Travel (in)
    4.9
  • Rear Adjustable Shock / Spring Pre-Load
    Yes
  • Rear Adjustable Rebound Damping
    Yes
  • Number Rear Shock Absorbers
    1
  • Rear Suspension Material
    Aluminum
  • Steering Damper
    No
  • Air Adjustable
    No
• WHEELS & TIRES

  add remove
  • Tube / Tubeless
    Tubeless
  • Front Tire (Full Spec)
    Bridgestone® Battlax Hypersport S20: 120/70ZR17M/C (58W)
  • Rear Tire (Full Spec)
    Bridgestone® Battlax Hypersport S20: 190/50ZR17M/C (73W)
• BRAKES

  add remove
  • Front Brake Type
    Dual Hydraulic Disc
  • Front Brake Diameter (in)
    12.2
  • Rear Brake Type
    Hydraulic Disc
  • Rear Brake Diameter (in)
    9.8
  • Brake Brand Name
    Brembo®
• SEATS

  add remove
  • Seat Type
    One-Piece
  • Seat Location
    Driver and Passenger
  • Seat Material
    Vinyl
  • Seat Height (in)
    31.5
  • Number Of Seats
    2
• Colour options

  add remove
  • Metallic Matte Sovereign Red / Metallic Flat Spark Black / Metallic Matte Graphite Gray
