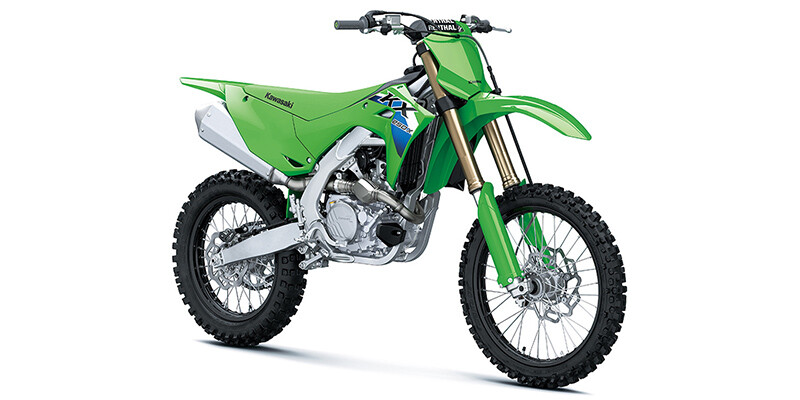

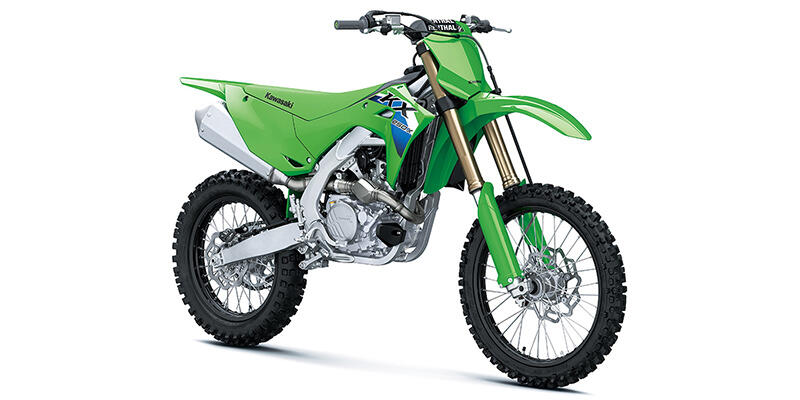

2026 KX^™250X

Specifications

• ENGINE

  add remove
  • Engine Type
    Single-Cylinder
  • Cylinders
    1
  • Engine Stroke
    4-Stroke
  • Cooling
    Liquid
  • Valves
    4
  • Valves Per Cylinder
    4
  • Valve Configuration
    DOHC
  • Bore (in)
    3.07
  • Stroke (in)
    2.06
  • Displacement (cc)
    249
  • Compression Ratio
    14.0:1
  • Carburetion Brand
    Keihin
  • Carburetor
    No
  • Carburetion Type
    Fuel Injected
  • Fuel Requirements
    Regular
  • Turbocharged
    No
  • Supercharged
    No
• TRANSMISSION

  add remove
  • Transmission Type
    Manual
  • Number Of Speeds
    5
  • Primary Drive (Rear Wheel)
    Chain
  • Reverse
    No
• TECHNICAL SPECIFICATIONS

  add remove
  • Length (in)
    85.8
  • Width (in)
    32.3
  • Height (in)
    49.6
  • Wheelbase (in)
    58.5
  • Ground Clearance (in)
    13
  • Dry Weight (lbs)
    233.3
  • Wet Weight (lbs)
    243.2
  • Fuel Capacity (gal)
    1.64
  • Engine Displacement to Weight (cc)
    1.07
• SUSPENSION

  add remove
  • Front Suspension Type
    Inverted Fork
  • Front Suspension Size (in)
    1.9
  • Front Travel (in)
    12
  • Front Adjustable Fork Pre-Load
    No
  • Front Adjustable Rebound Damping
    Yes
  • Front Central Suspension Strut
    No
  • Rear Suspension Brand Name
    UNI-TRAK®
  • Rear Suspension Type
    Twin Sided Swing Arm
  • Rear Travel (in)
    12.1
  • Rear Adjustable Shock / Spring Pre-Load
    Yes
  • Rear Adjustable Rebound Damping
    Yes
  • Number Rear Shock Absorbers
    1
  • Rear Suspension Material
    Aluminum
  • Steering Damper
    No
  • Air Adjustable
    No
  • Front Suspension Brand Name
    Showa®
• WHEELS & TIRES

  add remove
  • Tube / Tubeless
    Tubed
  • Front Tire (Full Spec)
    Dunlop® Geomax AT18F: 80/100-21 51M
  • Rear Tire (Full Spec)
    Dunlop® Geomax AT18 110/100-18 64M
• BRAKES

  add remove
  • Front Brake Type
    Disc
  • Front Brake Diameter (in)
    10.6
  • Rear Brake Type
    Disc
  • Rear Brake Diameter (in)
    9.4
• SEATS

  add remove
  • Seat Type
    One-Piece
  • Seat Location
    Driver
  • Seat Material
    Vinyl
  • Seat Height (in)
    37.2
  • Number Of Seats
    1
• Colour options

  add remove
  • Lime Green
