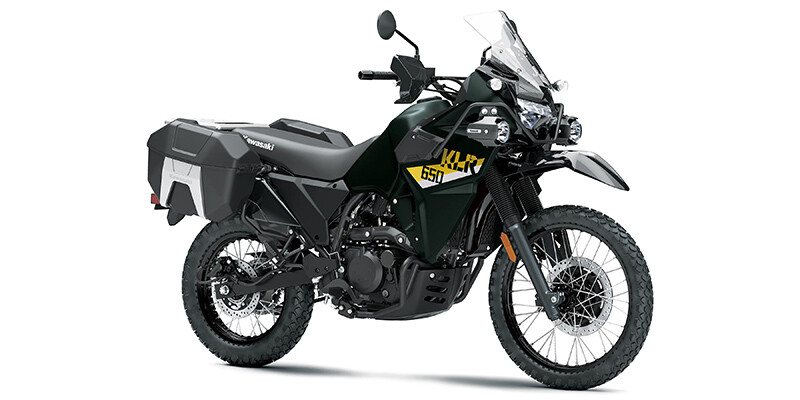

2026 KLR^®650 Adventure ABS

Specifications

• ENGINE

  add remove
  • Engine Type
    Single-Cylinder
  • Cylinders
    1
  • Engine Stroke
    4-Stroke
  • Cooling
    Liquid
  • Valves
    4
  • Valves Per Cylinder
    4
  • Valve Configuration
    DOHC
  • Bore (in)
    3.94
  • Stroke (in)
    3.27
  • Displacement (cc)
    652
  • Compression Ratio
    9.8:1
  • Carburetion Brand
    Keihin
  • Carburetor
    No
  • Number Of Carburetors
    0
  • Carburetion Type
    Fuel Injected
  • Fuel Requirements
    Regular
  • Turbocharged
    No
  • Supercharged
    No
  • Torque (Ft Lbs)
    39.1
  • Horsepower (bhp)
    40
• TRANSMISSION

  add remove
  • Transmission Type
    Manual
  • Number Of Speeds
    5
  • Overdrive
    Yes
  • Primary Drive (Rear Wheel)
    Chain
  • Reverse
    No
• TECHNICAL SPECIFICATIONS

  add remove
  • Length (in)
    89.8
  • Width (in)
    38.2
  • Height (in)
    57.3
  • Wheelbase (in)
    60.6
  • Ground Clearance (in)
    8.3
  • Dry Weight (lbs)
    443
  • Wet Weight (lbs)
    487.1
  • Fuel Capacity (gal)
    6.1
• SUSPENSION

  add remove
  • Front Suspension Type
    Telescopic Fork
  • Front Suspension Size (in)
    1.6
  • Front Travel (in)
    7.9
  • Front Adjustable Fork Pre-Load
    Yes
  • Front Adjustable Rebound Damping
    Yes
  • Front Central Suspension Strut
    No
  • Rear Suspension Brand Name
    UNI-TRAK®
  • Rear Suspension Type
    Twin Sided Swing Arm
  • Rear Travel (in)
    7.3
  • Rear Adjustable Shock / Spring Pre-Load
    Yes
  • Rear Adjustable Rebound Damping
    Yes
  • Number Rear Shock Absorbers
    1
  • Steering Damper
    No
  • Air Adjustable
    No
• WHEELS & TIRES

  add remove
  • Tube / Tubeless
    Tubed
  • Front Tire (Full Spec)
    90/90 R21
  • Rear Tire (Full Spec)
    130/80 R17
• BRAKES

  add remove
  • Front Brake Type
    Hydraulic Disc
  • Front Brake Diameter (in)
    11.8
  • Rear Brake Type
    Hydraulic Disc
  • Rear Brake Diameter (in)
    9.4
• SEATS

  add remove
  • Seat Type
    One-Piece
  • Seat Location
    Driver and Passenger
  • Seat Material
    Vinyl
  • Seat Height (in)
    34.3
  • Number Of Seats
    2
• Colour options

  add remove
  • Metallic Matte Dark Green
  • Cypher Camo Beige / Metallic Matte Carbon Gray
