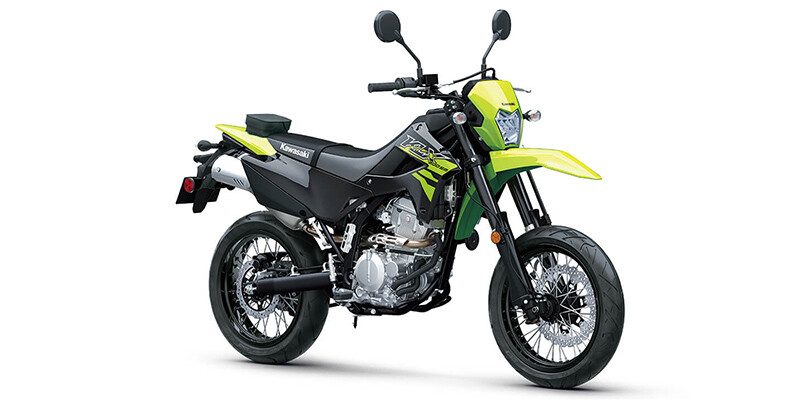

2026 KLX^®300SM

Specifications

• ENGINE

  add remove
  • Engine Type
    Single-Cylinder
  • Cylinders
    1
  • Engine Stroke
    4-Stroke
  • Cooling
    Liquid
  • Valves
    4
  • Valves Per Cylinder
    4
  • Valve Configuration
    DOHC
  • Bore (in)
    3.07
  • Stroke (in)
    2.41
  • Displacement (cc)
    292
  • Compression Ratio
    11.1:1
  • Carburetion Brand
    Keihin
  • Carburetor
    No
  • Number Of Carburetors
    0
  • Carburetion Type
    Fuel Injected
  • Fuel Requirements
    Regular
  • Turbocharged
    No
  • Supercharged
    No
  • Torque (Ft Lbs)
    18.1
• TRANSMISSION

  add remove
  • Transmission Type
    Manual
  • Number Of Speeds
    6
  • Primary Drive (Rear Wheel)
    Chain
  • Reverse
    No
• TECHNICAL SPECIFICATIONS

  add remove
  • Length (in)
    83.3
  • Width (in)
    31.1
  • Height (in)
    44.7
  • Wheelbase (in)
    56.5
  • Ground Clearance (in)
    9.3
  • Wet Weight (lbs)
    304.3
  • Fuel Capacity (gal)
    2.1
• SUSPENSION

  add remove
  • Front Suspension Type
    Inverted Fork
  • Front Suspension Size (in)
    1.7
  • Front Travel (in)
    9.1
  • Front Adjustable Fork Pre-Load
    No
  • Front Adjustable Rebound Damping
    Yes
  • Front Central Suspension Strut
    No
  • Rear Suspension Brand Name
    UNI-TRAK®
  • Rear Suspension Type
    Twin Sided Swing Arm
  • Rear Travel (in)
    8.1
  • Rear Adjustable Shock / Spring Pre-Load
    Yes
  • Rear Adjustable Rebound Damping
    Yes
  • Number Rear Shock Absorbers
    1
  • Rear Suspension Material
    Aluminum
  • Steering Damper
    No
  • Air Adjustable
    No
• WHEELS & TIRES

  add remove
  • Tube / Tubeless
    Tubeless
  • Front Tire (Full Spec)
    IRC Road Winner RX-01F: 110/70-17M/C 54S
  • Rear Tire (Full Spec)
    IRC Road Winner RX-01R: 130/70-17M/C 62S
• BRAKES

  add remove
  • Front Brake Type
    Hydraulic Disc
  • Front Brake Diameter (in)
    11.8
  • Rear Brake Type
    Hydraulic Disc
  • Rear Brake Diameter (in)
    9.4
• SEATS

  add remove
  • Seat Type
    One-Piece
  • Seat Location
    Driver
  • Seat Material
    Vinyl
  • Seat Height (in)
    33.9
  • Number Of Seats
    1
• Colour options

  add remove
  • Neon Green / Ebony
  • Battle Gray / Ebony
