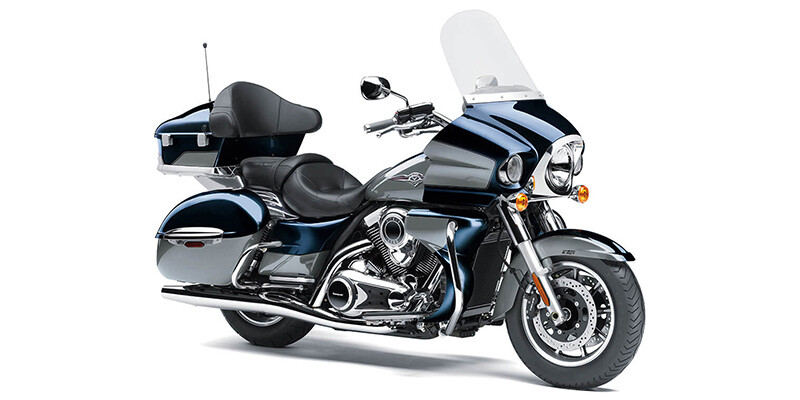

2025 Vulcan^® 1700 Voyager^® ABS

Specifications

• ENGINE

  add remove
  • Engine Type
    V Twin
  • Cylinders
    2
  • Engine Stroke
    4-Stroke
  • Cooling
    Liquid
  • Valves
    8
  • Valves Per Cylinder
    4
  • Valve Configuration
    SOHC
  • Bore (in)
    4.02
  • Stroke (in)
    4.09
  • Displacement (cc)
    1700
  • Compression Ratio
    9.5:1
  • Carburetor
    No
  • Number Of Carburetors
    0
  • Carburetion Type
    Fuel Injected
  • Fuel Requirements
    Regular
  • Turbocharged
    No
  • Supercharged
    No
  • Torque (Ft Lbs)
    107.6
  • Horsepower (bhp)
    73.4
• TRANSMISSION

  add remove
  • Transmission Type
    Manual
  • Number Of Speeds
    6
  • Overdrive
    Yes
  • Primary Drive (Rear Wheel)
    Belt
  • Reverse
    No
• TECHNICAL SPECIFICATIONS

  add remove
  • Length (in)
    100.8
  • Width (in)
    39.2
  • Height (in)
    61
  • Wheelbase (in)
    65.6
  • Ground Clearance (in)
    5.3
  • Wet Weight (lbs)
    895.2
  • Fuel Capacity (gal)
    5.3
• SUSPENSION

  add remove
  • Front Suspension Type
    Telescopic Fork
  • Front Suspension Size (in)
    1.8
  • Front Travel (in)
    5.5
  • Front Adjustable Fork Pre-Load
    No
  • Front Adjustable Rebound Damping
    No
  • Front Central Suspension Strut
    No
  • Rear Suspension Type
    Twin Sided Swing Arm
  • Rear Travel (in)
    3.1
  • Rear Adjustable Shock / Spring Pre-Load
    No
  • Rear Adjustable Rebound Damping
    Yes
  • Number Rear Shock Absorbers
    2
  • Rear Suspension Material
    Steel
  • Steering Damper
    No
  • Air Adjustable
    Yes
  • Front Suspension Brand Name
    Showa®
• WHEELS & TIRES

  add remove
  • Tube / Tubeless
    Tubeless
  • Front Tire (Full Spec)
    Bridgestone® Exedra: 130/90-B16 67H
  • Rear Tire (Full Spec)
    Bridgestone® Exedra: 170/70-B16 75H
• BRAKES

  add remove
  • Front Brake Type
    Dual Hydraulic Disc
  • Front Brake Diameter (in)
    11.8
  • Rear Brake Type
    Disc
  • Rear Brake Diameter (in)
    11.8
• SEATS

  add remove
  • Seat Type
    Two-Piece
  • Seat Location
    Driver and Passenger
  • Seat Material
    Vinyl
  • Seat Height (in)
    28.7
  • Number Of Seats
    2
• Colour options

  add remove
  • Metallic Ocean Blue / Metallic Moondust Gray
