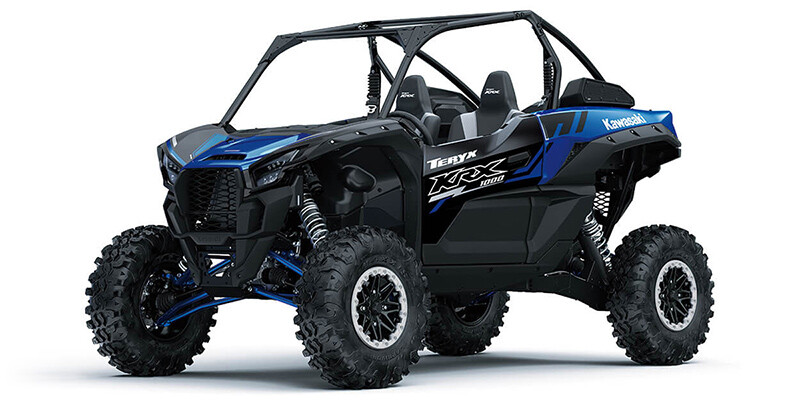

2025 Teryx® KRX™ 1000

2025 Teryx® KRX™ 1000

Specifications

  • ENGINE
    add remove
    • Engine Type
      Parallel Twin
    • Cylinders
      2
    • Engine Stroke
      4-Stroke
    • Torque (Ft Lbs)
      76.7
    • Valves
      4
    • Valves Per Cylinder
      2
    • Valve Configuration
      DOHC
    • Bore (in)
      3.62
    • Stroke (in)
      2.96
    • Displacement (cc)
      999
    • Compression Ratio
      11.5:1
    • Fuel Injector
      Yes
    • Carburetor
      No
    • Number Of Carburetors
      0
    • Carburetion Type
      Fuel Injected
  • TRANSMISSION
    add remove
    • Transmission Type
      Continuously Variable (CVT)
    • Hi / Low Range
      Yes
    • Primary Drive (Engine / Transmission)
      Belt
    • Primary Drive (Front Wheel)
      Shaft
    • Reverse
      Yes
    • Adjustable Throttle
      Not Available
    • Primary Drive (Rear Wheel)
      Shaft
  • DRIVE LINE
    add remove
    • Driveline Type
      Selectable 4X2 / 4X4
    • Number Of Driveline Modes
      2
    • Rear Unlocking Differential
      Yes
    • Differential Lock Location
      Front
    • Limited Slip Differential Location
      Front
    • Rear Solid Axle
      No
  • TECHNICAL SPECIFICATIONS
    add remove
    • Width (in)
      68.1
    • Height (in)
      74.8
    • Wheelbase (in)
      98.8
    • Front Tread Width (in)
      59.3
    • Rear Tread Width (in)
      59.4
    • Turning Radius (ft)
      20.3
    • Ground Clearance (in)
      14
    • Payload Capacity (lbs)
      781
    • Fuel Capacity (gal)
      10.6
    • Wet Weight (lbs)
      1896.3
  • SUSPENSION
    add remove
    • Front Suspension Type
      Independent Double Wishbone
    • Rear Suspension Type
      Independent
    • Number Rear Shock Absorbers
      2
    • Air Adjustable
      No
    • Center Suspension
      Not Available
    • Adjustment Type
      Shock Mounted Adjustment
    • Rear Adjustable Shock / Spring Pre-Load
      Yes
    • Front Travel (in)
      18.6
    • Rear Travel (in)
      21.1
    • Front Suspension Brand Name
      Showa®
    • Front Adjustable Fork Pre-Load
      Yes
    • Rear Suspension Brand Name
      Showa®
    • Rear Stabilizer Bar
      Yes
  • WHEELS & TIRES
    add remove
    • Front Tire (Full Spec)
      Maxxis® Carnivore: 31 x 10.00R15 8PR
    • Rear Tire (Full Spec)
      Maxxis® Carnivore: 31 x 10.00R15 8PR
    • Spare Tire
      Not Available
  • BRAKES
    add remove
    • Front Brake Type
      Dual Hydraulic Disc
    • Rear Brake Type
      Dual Hydraulic Disc
    • Anti-Lock Brakes
      Not Available
  • TOWING & HAULING
    add remove
    • Rear Hitch
      Standard
    • Draw Bar
      Not Available
    • Winch
      Optional
    • Tilt
      No
    • Removable Tailgate
      No
    • Removable Sides
      No
  • STORAGE
    add remove
    • Bed Length (in)
      14.6
    • Bed Width (in)
      33.1
    • Bed Height (in)
      9.1
    • Cargo Bed Material
      Polyethylene
    • Bed Capacity (lbs.)
      351
    • Helmet Storage
      Not Available
    • Gun Scabbard
      Not Available
    • Lockable Storage
      Not Available
    • Cargo Bed Storage
      Optional
  • SEATS
    add remove
    • Seat Type
      Bucket
    • Seat Material
      Vinyl
    • Number Of Seats
      2
    • Number Of Rows
      1
  • Colour options
    add remove
    • METALLIC SIERRA BLUE, SUPER BLACK
    • METALLIC LIGHT GRAY, SUPER BLACK
