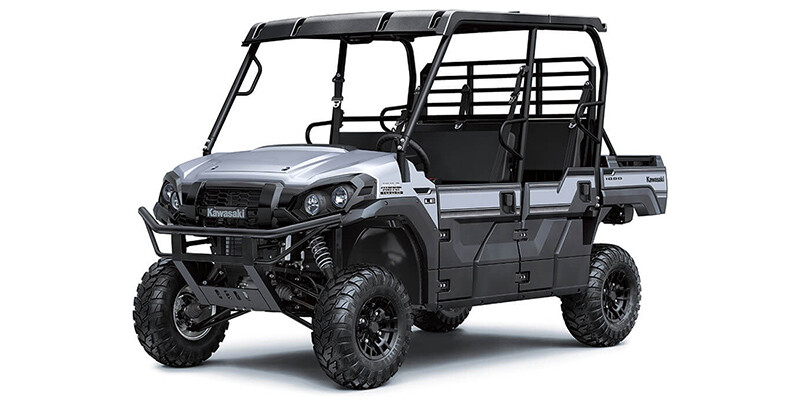

2025 Mule^™ PRO-FXT^™ 1000 LE

Specifications

• ENGINE

  add remove
  • Engine Type
    Parallel Twin
  • Cylinders
    2
  • Engine Stroke
    4-Stroke
  • Torque (Ft Lbs)
    61.5
  • Valves
    8
  • Valves Per Cylinder
    4
  • Valve Configuration
    DOHC
  • Bore (in)
    3.62
  • Stroke (in)
    2.96
  • Displacement (cc)
    999
  • Compression Ratio
    10.1:1
  • Fuel Injector
    Yes
  • Carburetor
    No
  • Number Of Carburetors
    0
  • Carburetion Type
    Fuel Injected
  • Engine Brand Name
    Kawasaki
• TRANSMISSION

  add remove
  • Transmission Type
    Continuously Variable (CVT)
  • Hi / Low Range
    Yes
  • Primary Drive (Engine / Transmission)
    Belt
  • Primary Drive (Front Wheel)
    Shaft
  • Reverse
    Yes
  • Adjustable Throttle
    Not Available
  • Primary Drive (Rear Wheel)
    Shaft
• DRIVE LINE

  add remove
  • Driveline Type
    Selectable 4X2 / 4X4
  • Number Of Driveline Modes
    2
  • Rear Unlocking Differential
    Yes
  • Differential Lock Location
    Rear
  • Limited Slip Differential Location
    Front
  • Rear Solid Axle
    No
• TECHNICAL SPECIFICATIONS

  add remove
  • Width (in)
    64
  • Height (in)
    80.9
  • Wheelbase (in)
    92.3
  • Turning Radius (ft)
    16
  • Ground Clearance (in)
    11.6
  • Dry Weight (lbs)
    1893
  • Payload Capacity (lbs)
    1616.3
  • Towing Capacity (lbs)
    2000
  • Fuel Capacity (gal)
    7.9
  • Engine Displacement to Weight (cc)
    0.52
  • Wet Weight (lbs)
    1913.9
• SUSPENSION

  add remove
  • Front Suspension Type
    Independent Double Wishbone
  • Rear Suspension Type
    Independent Double Wishbone
  • Number Rear Shock Absorbers
    2
  • Air Adjustable
    No
  • Center Suspension
    Not Available
  • Front Travel (in)
    11
  • Rear Travel (in)
    10.1
• WHEELS & TIRES

  add remove
  • Tube / Tubeless
    Tubeless
  • Front Tire (Full Spec)
    Duro: 26 x 9-12
  • Rear Tire (Full Spec)
    Duro: 26 x 11-12
  • Spare Tire
    Not Available
• BRAKES

  add remove
  • Front Brake Type
    Dual Hydraulic Disc
  • Rear Brake Type
    Dual Hydraulic Disc
  • Anti-Lock Brakes
    Not Available
  • Front Brake Diameter (in)
    8.3
  • Rear Brake Diameter (in)
    8.3
• TOWING & HAULING

  add remove
  • Rear Hitch
    Standard
  • Draw Bar
    Optional
  • Rear Hitch Type
    Receiver
  • Size (in)
    2
  • Tilt
    No
  • Removable Tailgate
    No
  • Removable Sides
    No
• STORAGE

  add remove
  • Bed Length (in)
    42.7
  • Bed Width (in)
    53.7
  • Bed Height (in)
    11
  • Cargo Bed Material
    Steel
  • Bed Capacity (lbs.)
    999
  • Bed Volume (ft3)
    14.6
  • Helmet Storage
    Not Available
  • Gun Scabbard
    Optional
  • Number Of Cupholders
    2
  • Lockable Storage
    Not Available
  • Cargo Bed Storage
    Optional
• SEATS

  add remove
  • Seat Type
    Bench
  • Seat Material
    Vinyl
  • Number Of Seats
    6
  • Number Of Rows
    2
• Colour options

  add remove
  • Ice Gray
  • Candy Persimmon Red
