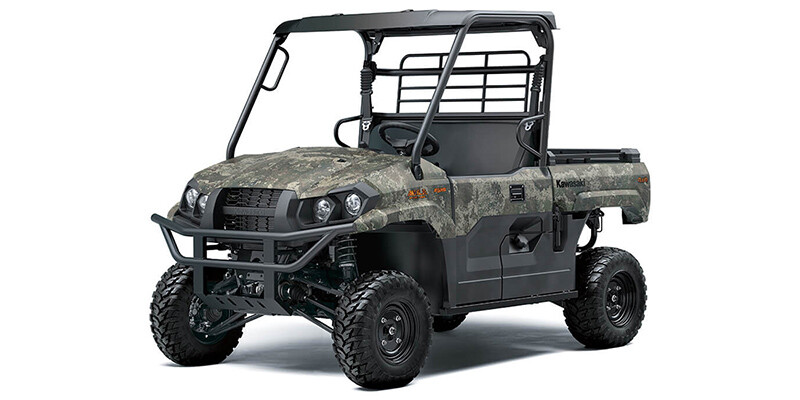

2025 Mule^™ PRO-MX^™ EPS Camo

Specifications

• ENGINE

  add remove
  • Engine Type
    Single-Cylinder
  • Cylinders
    1
  • Engine Stroke
    4-Stroke
  • Torque (Ft Lbs)
    42.7
  • Valve Configuration
    SOHC
  • Bore (in)
    4.02
  • Stroke (in)
    3.35
  • Displacement (cc)
    695
  • Compression Ratio
    10.3:1
  • Fuel Injector
    Yes
  • Carburetor
    No
  • Number Of Carburetors
    0
  • Carburetion Type
    Fuel Injected
  • Engine Brand Name
    Kawasaki
  • Turbocharged
    No
  • Supercharged
    No
• TRANSMISSION

  add remove
  • Transmission Type
    Continuously Variable (CVT)
  • Hi / Low Range
    Yes
  • Primary Drive (Engine / Transmission)
    Belt
  • Primary Drive (Front Wheel)
    Shaft
  • Reverse
    Yes
  • Adjustable Throttle
    Not Available
  • Primary Drive (Rear Wheel)
    Shaft
• DRIVE LINE

  add remove
  • Driveline Type
    Selectable 4X2 / 4X4
  • Number Of Driveline Modes
    2
  • Rear Unlocking Differential
    Yes
  • Differential Lock Location
    Rear
  • Limited Slip Differential Location
    Front
  • Rear Solid Axle
    No
• TECHNICAL SPECIFICATIONS

  add remove
  • Width (in)
    60
  • Height (in)
    75.8
  • Wheelbase (in)
    78.9
  • Turning Radius (ft)
    14
  • Ground Clearance (in)
    10.6
  • Payload Capacity (lbs)
    1200
  • Towing Capacity (lbs)
    1500
  • Fuel Capacity (gal)
    9.5
  • Wet Weight (lbs)
    1598.6
• SUSPENSION

  add remove
  • Front Suspension Type
    Independent Double Wishbone
  • Rear Suspension Type
    Independent Double Wishbone
  • Number Rear Shock Absorbers
    2
  • Air Adjustable
    No
  • Center Suspension
    Not Available
  • Front Travel (in)
    8.6
  • Rear Travel (in)
    9.1
• WHEELS & TIRES

  add remove
  • Front Tire (Full Spec)
    Duro 25 x 8 -12
  • Rear Tire (Full Spec)
    Duro 25 x 10 -12
  • Spare Tire
    Not Available
• BRAKES

  add remove
  • Front Brake Type
    Dual Hydraulic Disc
  • Rear Brake Type
    Dual Hydraulic Disc
  • Anti-Lock Brakes
    Not Available
  • Front Brake Diameter (in)
    8.3
  • Rear Brake Diameter (in)
    8.3
• TOWING & HAULING

  add remove
  • Rear Hitch
    Standard
  • Draw Bar
    Optional
  • Rear Hitch Type
    Receiver
  • Size (in)
    2
  • Tilt
    No
  • Removable Tailgate
    No
  • Removable Sides
    No
• STORAGE

  add remove
  • Bed Length (in)
    33.4
  • Bed Width (in)
    44.1
  • Bed Height (in)
    9.1
  • Cargo Bed Material
    Steel
  • Bed Capacity (lbs.)
    699
  • Helmet Storage
    Not Available
  • Gun Scabbard
    Optional
  • Number Of Cupholders
    2
  • Lockable Storage
    Not Available
  • Cargo Bed Storage
    Optional
• SEATS

  add remove
  • Seat Type
    Bench
  • Seat Material
    Vinyl
  • Seat Height (in)
    33.5
  • Number Of Seats
    2
  • Number Of Rows
    1
• Colour options

  add remove
  • Truetimber® Strata
