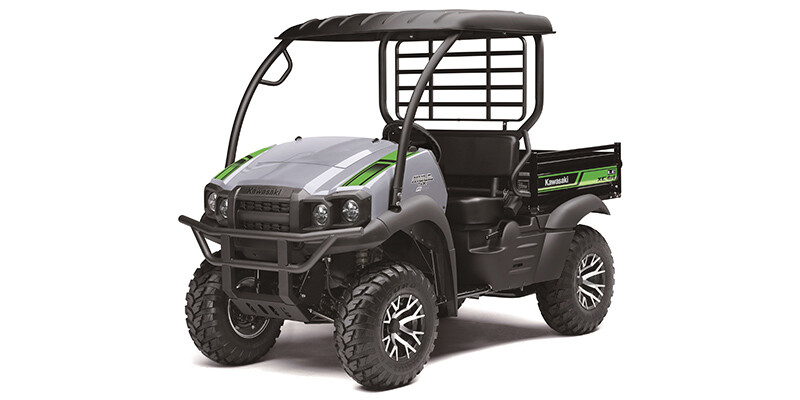

2025 Mule SX^™ 4x4 XC LE FI

Specifications

• ENGINE

  add remove
  • Engine Type
    Single-Cylinder
  • Cylinders
    1
  • Engine Stroke
    4-Stroke
  • Torque (Ft Lbs)
    21.4
  • Valves
    2
  • Valves Per Cylinder
    2
  • Valve Configuration
    OHV
  • Bore (in)
    3.23
  • Stroke (in)
    2.99
  • Displacement (cc)
    401
  • Compression Ratio
    8.6:1
  • Fuel Injector
    Yes
  • Carburetor
    No
  • Number Of Carburetors
    0
  • Carburetion Type
    Fuel Injected
• TRANSMISSION

  add remove
  • Transmission Type
    Continuously Variable (CVT)
  • Hi / Low Range
    Yes
  • Primary Drive (Engine / Transmission)
    Belt
  • Primary Drive (Front Wheel)
    Shaft
  • Reverse
    Yes
  • Adjustable Throttle
    Not Available
  • Primary Drive (Rear Wheel)
    Shaft
• DRIVE LINE

  add remove
  • Driveline Type
    Selectable 4X2 / 4X4
  • Number Of Driveline Modes
    2
  • Rear Unlocking Differential
    Yes
  • Differential Lock Location
    Rear
  • Limited Slip Differential Location
    Front
• TECHNICAL SPECIFICATIONS

  add remove
  • Width (in)
    52.6
  • Height (in)
    75
  • Wheelbase (in)
    70.1
  • Turning Radius (ft)
    11.8
  • Ground Clearance (in)
    6.7
  • Payload Capacity (lbs)
    884
  • Towing Capacity (lbs)
    1100
  • Fuel Capacity (gal)
    4.2
  • Wet Weight (lbs)
    1098.1
• SUSPENSION

  add remove
  • Front Suspension Type
    McPherson Strut
  • Rear Suspension Type
    Swing Arm
  • Number Rear Shock Absorbers
    2
  • Air Adjustable
    No
  • Center Suspension
    Not Available
  • Adjustment Type
    Shock Mounted Adjustment
  • Rear Adjustable Shock / Spring Pre-Load
    Yes
  • Front Travel (in)
    3.1
  • Rear Travel (in)
    3.1
• WHEELS & TIRES

  add remove
  • Tube / Tubeless
    Tubeless
  • Front Tire (Full Spec)
    Duro: 26 x 9-12
  • Rear Tire (Full Spec)
    Duro: 26 x 9-12
  • Spare Tire
    Not Available
• BRAKES

  add remove
  • Front Brake Type
    Sealed Hydraulic Drum
  • Rear Brake Type
    Sealed Hydraulic Drum
  • Anti-Lock Brakes
    Not Available
• TOWING & HAULING

  add remove
  • Rear Hitch
    Optional
  • Draw Bar
    Not Available
  • Winch
    Optional
  • Tilt
    No
  • Removable Tailgate
    No
  • Removable Sides
    No
• STORAGE

  add remove
  • Bed Length (in)
    35.6
  • Bed Width (in)
    40.9
  • Bed Height (in)
    9.6
  • Cargo Bed Material
    Steel
  • Bed Capacity (lbs.)
    399
  • Bed Volume (ft3)
    8.1
  • Helmet Storage
    Not Available
  • Gun Scabbard
    Optional
  • Number Of Cupholders
    2
  • Lockable Storage
    Not Available
  • Cargo Bed Storage
    Optional
  • Rack Rails Location
    Cargo Bed
• SEATS

  add remove
  • Seat Type
    Bench
  • Seat Material
    Vinyl
  • Number Of Seats
    2
  • Number Of Rows
    1
• Colour options

  add remove
  • Ice Gray
