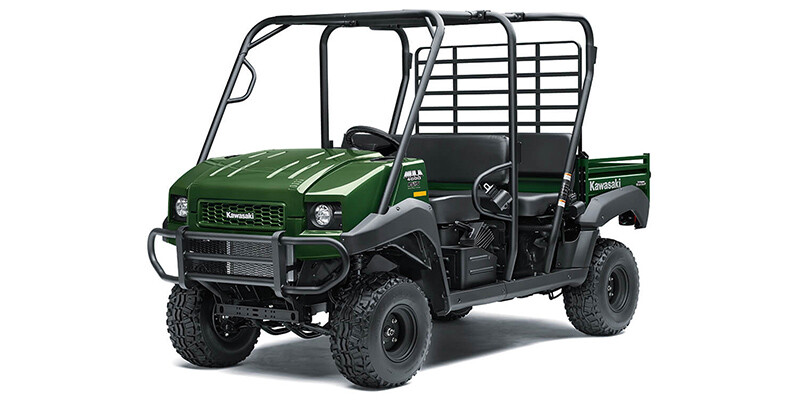

2026 Mule^™ 4000 Trans

Specifications

• ENGINE

  add remove
  • Engine Type
    V Twin
  • Cylinders
    2
  • Engine Stroke
    4-Stroke
  • Torque (Ft Lbs)
    34.7
  • Valves
    4
  • Valves Per Cylinder
    2
  • Valve Configuration
    OHV
  • Bore (in)
    2.99
  • Stroke (in)
    2.68
  • Displacement (cc)
    617
  • Compression Ratio
    10.3:1
  • Carburetion Brand
    Mikuni
  • Fuel Injector
    Yes
  • Carburetor
    No
  • Number Of Carburetors
    0
  • Carburetion Type
    Fuel Injected
• TRANSMISSION

  add remove
  • Transmission Type
    Continuously Variable (CVT)
  • Hi / Low Range
    Yes
  • Primary Drive (Engine / Transmission)
    Belt
  • Primary Drive (Front Wheel)
    Shaft
  • Reverse
    Yes
  • Adjustable Throttle
    Not Available
  • Primary Drive (Rear Wheel)
    Shaft
• DRIVE LINE

  add remove
  • Driveline Type
    4X2
  • Number Of Driveline Modes
    1
  • Rear Unlocking Differential
    Yes
  • Differential Lock Location
    Rear
• TECHNICAL SPECIFICATIONS

  add remove
  • Width (in)
    58.5
  • Height (in)
    75.8
  • Wheelbase (in)
    85.2
  • Turning Radius (ft)
    12.8
  • Ground Clearance (in)
    7.7
  • Dry Weight (lbs)
    1448.7
  • Payload Capacity (lbs)
    1330
  • Towing Capacity (lbs)
    1200
  • Fuel Capacity (gal)
    6.3
  • Engine Displacement to Weight (cc)
    0.43
  • Wet Weight (lbs)
    1514.8
• SUSPENSION

  add remove
  • Front Suspension Type
    McPherson Strut
  • Rear Suspension Type
    De Dion Semi Independent
  • Number Rear Shock Absorbers
    2
  • Air Adjustable
    No
  • Center Suspension
    Not Available
  • Front Travel (in)
    3.9
  • Rear Travel (in)
    2.8
• WHEELS & TIRES

  add remove
  • Tube / Tubeless
    Tubeless
  • Front Tire (Full Spec)
    Duro: 23 x 11-10
  • Rear Tire (Full Spec)
    Duro: 23 x 11-10
  • Spare Tire
    Not Available
• BRAKES

  add remove
  • Front Brake Type
    Sealed Hydraulic Drum
  • Rear Brake Type
    Sealed Hydraulic Drum
  • Anti-Lock Brakes
    Not Available
• TOWING & HAULING

  add remove
  • Rear Hitch
    Optional
  • Draw Bar
    Optional
  • Winch
    Optional
  • Tilt
    No
  • Removable Tailgate
    No
  • Removable Sides
    No
• STORAGE

  add remove
  • Bed Length (in)
    50.4
  • Bed Width (in)
    47.6
  • Bed Height (in)
    11.2
  • Cargo Bed Material
    Steel
  • Bed Capacity (lbs.)
    800
  • Bed Volume (ft3)
    10.2
  • Helmet Storage
    Not Available
  • Gun Scabbard
    Optional
  • Number Of Cupholders
    2
  • Lockable Storage
    Not Available
  • Cargo Bed Storage
    Optional
• SEATS

  add remove
  • Seat Type
    Bench
  • Seat Material
    Vinyl
  • Number Of Seats
    4
  • Number Of Rows
    2
• Colour options

  add remove
  • Timberline Green
