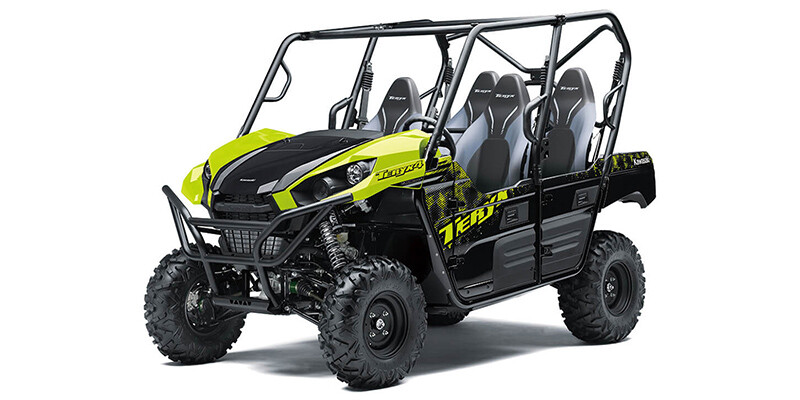

2025 Teryx4^™

Specifications

• ENGINE

  add remove
  • Engine Type
    V Twin
  • Cylinders
    2
  • Engine Stroke
    4-Stroke
  • Torque (Ft Lbs)
    47
  • Valves
    4
  • Valves Per Cylinder
    2
  • Valve Configuration
    SOHC
  • Bore (in)
    3.35
  • Stroke (in)
    2.72
  • Displacement (cc)
    783
  • Compression Ratio
    10.7:1
  • Carburetion Brand
    Mikuni
  • Fuel Injector
    Yes
  • Carburetor
    No
  • Number Of Carburetors
    0
  • Carburetion Type
    Fuel Injected
• TRANSMISSION

  add remove
  • Transmission Type
    Continuously Variable (CVT)
  • Hi / Low Range
    Yes
  • Primary Drive (Engine / Transmission)
    Belt
  • Primary Drive (Front Wheel)
    Shaft
  • Reverse
    Yes
  • Adjustable Throttle
    Not Available
  • Primary Drive (Rear Wheel)
    Shaft
• DRIVE LINE

  add remove
  • Driveline Type
    Selectable 4X2 / 4X4
  • Number Of Driveline Modes
    2
  • Rear Unlocking Differential
    Yes
  • Differential Lock Location
    Front
  • Limited Slip Differential Location
    Front
  • Rear Solid Axle
    No
• TECHNICAL SPECIFICATIONS

  add remove
  • Width (in)
    60
  • Height (in)
    77.8
  • Wheelbase (in)
    85.6
  • Turning Radius (ft)
    16.7
  • Ground Clearance (in)
    11.2
  • Payload Capacity (lbs)
    1109
  • Towing Capacity (lbs)
    1300
  • Fuel Capacity (gal)
    7.9
  • Wet Weight (lbs)
    1605.2
• SUSPENSION

  add remove
  • Front Suspension Type
    Double A-Arm
  • Rear Suspension Type
    Independent
  • Number Rear Shock Absorbers
    2
  • Air Adjustable
    No
  • Center Suspension
    Not Available
  • Adjustment Type
    Shock Mounted Adjustment
  • Rear Adjustable Shock / Spring Pre-Load
    Yes
  • Front Travel (in)
    8
  • Rear Travel (in)
    8.3
  • Front Suspension Brand Name
    Fox® Podium
  • Front Adjustable Fork Pre-Load
    Yes
  • Rear Suspension Brand Name
    Fox® Podium
  • Rear Stabilizer Bar
    Yes
• WHEELS & TIRES

  add remove
  • Front Tire (Full Spec)
    Maxxis® Bighorn: 26 x 9-12
  • Rear Tire (Full Spec)
    Maxxis® Bighorn: 26 x 11-12
  • Spare Tire
    Not Available
• BRAKES

  add remove
  • Front Brake Type
    Dual Hydraulic Disc
  • Rear Brake Type
    Sealed Oil Bath Multi-Disc
  • Anti-Lock Brakes
    Not Available
  • Front Brake Diameter (in)
    7.9
• TOWING & HAULING

  add remove
  • Rear Hitch
    Standard
  • Draw Bar
    Optional
  • Winch
    Optional
  • Tilt
    No
  • Removable Tailgate
    No
  • Removable Sides
    No
• STORAGE

  add remove
  • Bed Length (in)
    17.9
  • Bed Width (in)
    47.6
  • Bed Height (in)
    8.7
  • Cargo Bed Material
    Polyethylene
  • Bed Capacity (lbs.)
    249
  • Bed Volume (ft3)
    4.3
  • Helmet Storage
    Not Available
  • Gun Scabbard
    Not Available
  • Number Of Cupholders
    4
  • Lockable Storage
    Not Available
  • Cargo Bed Storage
    Optional
• SEATS

  add remove
  • Seat Type
    Bucket
  • Seat Material
    Vinyl
  • Number Of Seats
    4
  • Number Of Rows
    2
• Colour options

  add remove
  • Neon Yellow / Super Black
