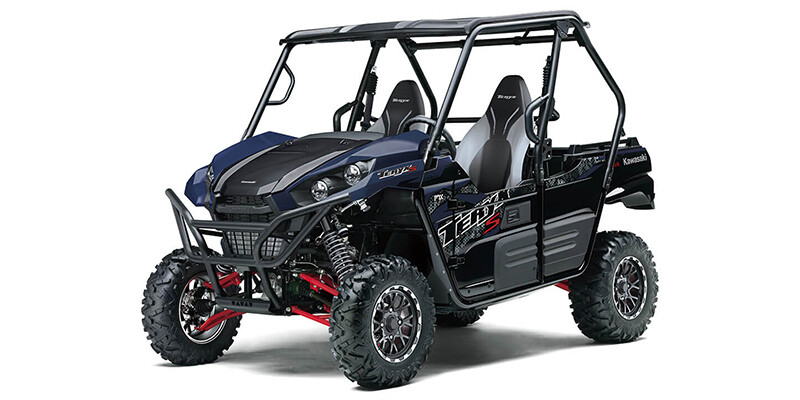

2025 Teryx^® S LE

Specifications

• ENGINE

  add remove
  • Engine Type
    V Twin
  • Cylinders
    2
  • Engine Stroke
    4-Stroke
  • Torque (Ft Lbs)
    47
  • Valves
    4
  • Valves Per Cylinder
    2
  • Valve Configuration
    SOHC
  • Bore (in)
    3.35
  • Stroke (in)
    2.72
  • Displacement (cc)
    783
  • Compression Ratio
    10.7:1
  • Carburetion Brand
    Mikuni
  • Fuel Injector
    Yes
  • Carburetor
    No
  • Number Of Carburetors
    0
  • Carburetion Type
    Fuel Injected
• TRANSMISSION

  add remove
  • Transmission Type
    Continuously Variable (CVT)
  • Hi / Low Range
    Yes
  • Primary Drive (Engine / Transmission)
    Belt
  • Primary Drive (Front Wheel)
    Shaft
  • Reverse
    Yes
  • Adjustable Throttle
    Not Available
  • Primary Drive (Rear Wheel)
    Shaft
• DRIVE LINE

  add remove
  • Driveline Type
    Selectable 4X2 / 4X4
  • Number Of Driveline Modes
    2
  • Rear Unlocking Differential
    Yes
  • Differential Lock Location
    Front
  • Limited Slip Differential Location
    Front
  • Rear Solid Axle
    No
• TECHNICAL SPECIFICATIONS

  add remove
  • Width (in)
    60
  • Height (in)
    75.8
  • Wheelbase (in)
    88.2
  • Turning Radius (ft)
    17.7
  • Ground Clearance (in)
    11.2
  • Payload Capacity (lbs)
    1100
  • Towing Capacity (lbs)
    1300
  • Fuel Capacity (gal)
    7.9
  • Wet Weight (lbs)
    1570
• SUSPENSION

  add remove
  • Front Suspension Type
    Double A-Arm
  • Rear Suspension Type
    Independent
  • Number Rear Shock Absorbers
    2
  • Air Adjustable
    No
  • Center Suspension
    Not Available
  • Adjustment Type
    Shock Mounted Adjustment
  • Rear Adjustable Shock / Spring Pre-Load
    Yes
  • Front Travel (in)
    10.7
  • Rear Travel (in)
    10
  • Front Suspension Brand Name
    Fox® 2.0
  • Front Adjustable Fork Pre-Load
    Yes
  • Rear Suspension Brand Name
    Fox® 2.0
  • Rear Stabilizer Bar
    Yes
• WHEELS & TIRES

  add remove
  • Front Tire (Full Spec)
    Maxxis® 27 x 9-14
  • Rear Tire (Full Spec)
    Maxxis® 27 x 11-14
  • Spare Tire
    Not Available
• BRAKES

  add remove
  • Front Brake Type
    Dual Hydraulic Disc
  • Rear Brake Type
    Sealed Oil Bath Multi-Disc
  • Anti-Lock Brakes
    Not Available
  • Front Brake Diameter (in)
    7.9
• TOWING & HAULING

  add remove
  • Rear Hitch
    Standard
  • Draw Bar
    Optional
  • Winch
    Optional
  • Tilt
    No
  • Removable Tailgate
    No
  • Removable Sides
    No
• STORAGE

  add remove
  • Bed Length (in)
    27.6
  • Bed Width (in)
    43.3
  • Bed Height (in)
    10.4
  • Cargo Bed Material
    Polyethylene
  • Bed Capacity (lbs.)
    600
  • Helmet Storage
    Not Available
  • Gun Scabbard
    Optional
  • Number Of Cupholders
    4
  • Lockable Storage
    Not Available
• SEATS

  add remove
  • Seat Type
    Bucket
  • Seat Material
    Vinyl
  • Number Of Seats
    2
  • Number Of Rows
    1
• Colour options

  add remove
  • Metallic Matte Twilight Blue/Super Black
  • Ice Gray/Super Black
