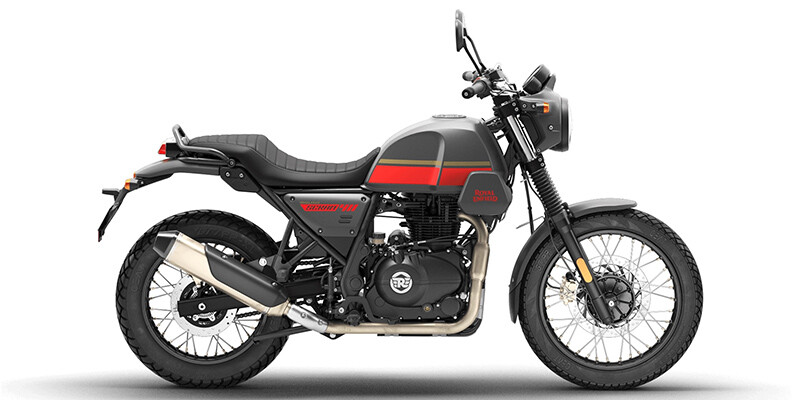

Scram 411

Specifications

• Engine

  add remove
  • Engine
    Standard
  • Engine Type
    Single-Cylinder
  • Cylinders
    1
  • Engine Stroke
    4-Stroke
  • Horsepower (bhp)
    24.3
  • Torque (Ft Lbs)
    23.6
  • Valves
    2
  • Valves Per Cylinder
    2
  • Valve Configuration
    SOHC
  • Bore (in)
    3.07
  • Stroke (in)
    3.39
  • Displacement (cc)
    411
  • Compression ratio
    9.5:1
• Transmission

  add remove
  • Transmission Type
    Manual
  • Number Of Speeds
    5
  • Overdrive
    No
  • Primary Drive (Rear Wheel)
    Chain
  • Reverse
    No
• TECHNICAL SPECIFICATIONS

  add remove
  • Length (in)
    85
  • Width (in)
    33
  • Height (in)
    45.9
  • Wheelbase (in)
    57.3
  • Ground Clearance (in)
    7.9
  • Engine Displacement to Weight (cc)
    1.01
  • Fuel Capacity (gal)
    3.9
  • Dry Weight (lbs)
    408
• SUSPENSION

  add remove
  • Front Suspension Type
    Telescopic Fork
  • Front Adjustable Fork Pre-Load
    No
  • Front Adjustable Rebound Damping
    No
  • Front Central Suspension Strut
    No
  • Rear Suspension Type
    Twin Sided Swing Arm
  • Rear Adjustable Shock / Spring Pre-Load
    No
  • Rear Adjustable Rebound Damping
    No
  • Number Rear Shock Absorbers
    1
  • Front Suspension Size (in)
    1.6
  • Front Travel (in)
    7.5
  • Rear Travel (in)
    7.1
• WHEELS & TIRES

  add remove
  • Wheels Composition
    Aluminum
  • Front Tire (Full Spec)
    100/90 R19
  • Rear Tire (Full Spec)
    120/90 R17
• BRAKES

  add remove
  • Front Brake Type
    Hydraulic Disc
  • Front Brake Diameter (in)
    11.8
  • Rear Brake Type
    Hydraulic Disc
  • Rear Brake Diameter (in)
    9.4
• Colour options

  add remove
  • Blazing Black
  • Graphite Blue
  • Graphite Red
  • Graphite Yellow
  • Skyline Blue
  • Silver Spirit
  • White Flame
