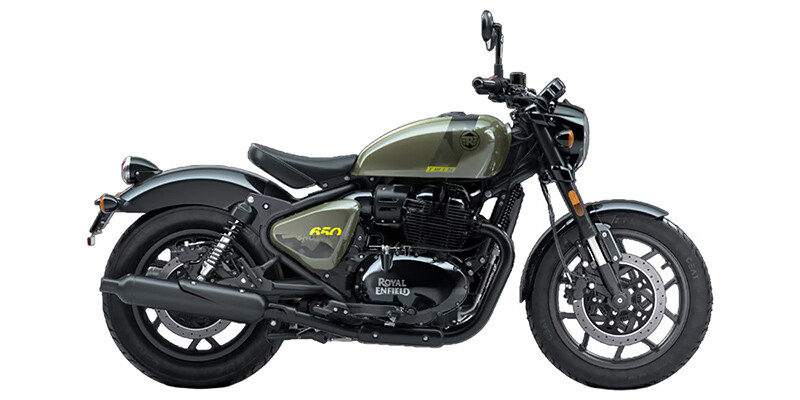

Shotgun 650

Specifications

• Engine

  add remove
  • Engine
    Standard
  • Engine Type
    Parallel Twin
  • Cylinders
    2
  • Engine Stroke
    4-Stroke
  • Horsepower (bhp)
    47
  • Torque (Ft Lbs)
    38.6
  • Valves
    8
  • Valves Per Cylinder
    4
  • Valve Configuration
    SOHC
  • Bore (in)
    3.07
  • Stroke (in)
    2.67
  • Displacement (cc)
    648
  • Compression ratio
    9.5:1
• Transmission

  add remove
  • Transmission Type
    Manual
  • Number Of Speeds
    6
  • Overdrive
    No
  • Primary Drive (Rear Wheel)
    Chain
  • Reverse
    No
• TECHNICAL SPECIFICATIONS

  add remove
  • Length (in)
    85.4
  • Width (in)
    32.3
  • Height (in)
    43.5
  • Wheelbase (in)
    57.7
  • Ground Clearance (in)
    5.5
  • Wet Weight (lbs)
    530
  • Fuel Capacity (gal)
    3.6
  • GVWR (lbs)
    943.6
• SUSPENSION

  add remove
  • Front Suspension Type
    Inverted Fork
  • Front Adjustable Fork Pre-Load
    No
  • Front Adjustable Rebound Damping
    No
  • Front Central Suspension Strut
    No
  • Rear Suspension Type
    Twin Sided Swing Arm
  • Rear Adjustable Shock / Spring Pre-Load
    Yes
  • Rear Adjustable Rebound Damping
    No
  • Number Rear Shock Absorbers
    2
  • Front Suspension Size (in)
    1.7
  • Front Travel (in)
    4.7
  • Rear Suspension Brand Name
    Showa®
  • Rear Travel (in)
    3.5
  • Front Suspension Brand Name
    Showa®
• WHEELS & TIRES

  add remove
  • Wheels Composition
    Aluminum
  • Front Tire (Full Spec)
    100/90-18 M/C 56H
  • Rear Tire (Full Spec)
    150/70-17 M/C 69H
• BRAKES

  add remove
  • Front Brake Type
    Hydraulic Disc
  • Front Brake Diameter (in)
    12.6
  • Rear Brake Type
    Hydraulic Disc
  • Rear Brake Diameter (in)
    11.8
• Colour options

  add remove
  • Green Drill
  • Sheet Metal Grey
