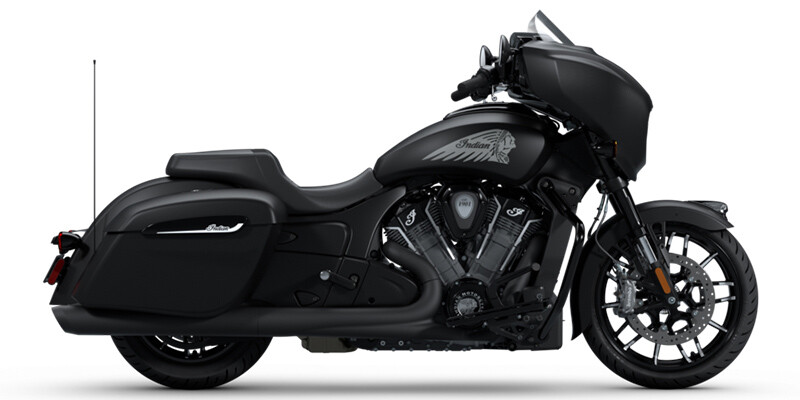

Chieftain^® PowerPlus Dark Horse^®

Specifications

• ENGINE

  add remove
  • Engine Type
    V Twin
  • Cylinders
    2
  • Engine Stroke
    4-Stroke
  • Torque (Ft Lbs)
    128
  • Torque (Nm)
    173.5
  • Valves
    4
  • Valve Configuration
    OHV - Pushrod
  • Bore (in)
    4.25
  • Stroke (in)
    3.8
  • Displacement (cc)
    1768
  • Compression Ratio
    11.0:1
  • Torque RPM
    3800
  • Fuel Injector Size (mm)
    52
  • Horsepower (bhp)
    122
• TRANSMISSION

  add remove
  • Number Of Speeds
    6
  • Gear Ratio (1)
    10.17
  • Gear Ratio (2)
    6.93
  • Gear Ratio (3)
    5.15
  • Gear Ratio (4)
    4.11
  • Gear Ratio (5)
    3.51
  • Gear Ratio (6)
    3.02
  • Final Drive Ratio
    2.379
• TECHNICAL SPECIFICATIONS

  add remove
  • Length (in)
    98.5
  • Width (in)
    41.9
  • Height (in)
    48.7
  • Wheelbase (in)
    65.7
  • Dry Weight (lbs)
    806
  • Wet Weight (lbs)
    842
  • GVWR (lbs)
    1385
  • Fuel Capacity (gal)
    5.5
  • Engine Displacement to Weight (cc)
    2.4
  • Ground Clearance (in)
    5.4
• WHEELS & TIRES

  add remove
  • Front Tire (Full Spec)
    Metzeler CRUISETEC™ 130/60B19 (66H)
  • Rear Tire (Full Spec)
    Metzeler CRUISETEC™ 180/60R16 (80H)
• Colour options

  add remove
  • Black Smoke
  • Blue Dusk
  • Sunset Red Smoke
  • Ghost White Metallic Smoke
