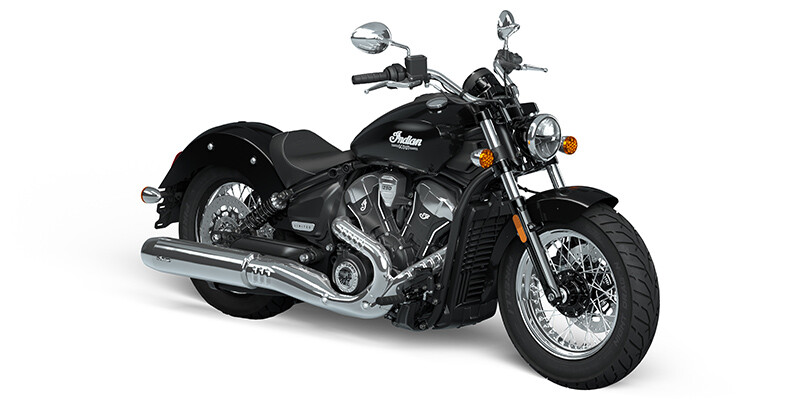

Scout^® Classic Limited

Specifications

• ENGINE

  add remove
  • Engine Type
    V Twin
  • Cylinders
    2
  • Engine Stroke
    4-Stroke
  • Torque (Ft Lbs)
    81
  • Torque (Nm)
    110
  • Valves
    4
  • Valve Configuration
    OHV - Pushrod
  • Bore (in)
    4.09
  • Stroke (in)
    2.9
  • Displacement (cc)
    1250
  • Compression Ratio
    12.5:1
  • Torque RPM
    6300
  • Fuel Injector Size (mm)
    63
  • Horsepower (bhp)
    105
• TRANSMISSION

  add remove
  • Number Of Speeds
    6
  • Gear Ratio (1)
    2.769
  • Gear Ratio (2)
    1.882
  • Gear Ratio (3)
    1.5
  • Gear Ratio (4)
    1.273
  • Gear Ratio (5)
    1.125
  • Gear Ratio (6)
    0.966
  • Final Drive Ratio
    2.276
• TECHNICAL SPECIFICATIONS

  add remove
  • Length (in)
    91.3
  • Width (in)
    36.1
  • Height (in)
    43.1
  • Wheelbase (in)
    61.5
  • Dry Weight (lbs)
    535
  • Wet Weight (lbs)
    555
  • GVWR (lbs)
    988
  • Fuel Capacity (gal)
    3.4
  • Engine Displacement to Weight (cc)
    2.37
  • Ground Clearance (in)
    4.4
• WHEELS & TIRES

  add remove
  • Front Tire (Full Spec)
    Pirelli® Night Dragon: 130/60B19 (67H)
  • Rear Tire (Full Spec)
    Pirelli® Night Dragon: 150/80B16 (77H)
• Colour options

  add remove
  • Black Metallic
  • Silver Quartz Smoke
