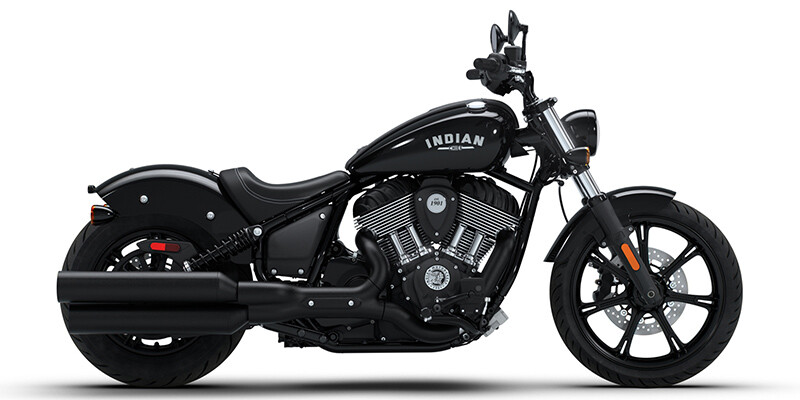

Chief^®

Specifications

• ENGINE

  add remove
  • Engine Type
    V Twin
  • Cylinders
    2
  • Engine Stroke
    4-Stroke
  • Torque (Ft Lbs)
    108
  • Torque (Nm)
    146
  • Valves
    4
  • Valve Configuration
    OHV - Pushrod
  • Bore (in)
    3.98
  • Stroke (in)
    4.45
  • Displacement (cc)
    1811
  • Compression Ratio
    9.5:1
  • Torque RPM
    3200
  • Fuel Injector Size (mm)
    54
• TRANSMISSION

  add remove
  • Number Of Speeds
    6
  • Gear Ratio (1)
    9.4
  • Gear Ratio (2)
    6.41
  • Gear Ratio (3)
    4.76
  • Gear Ratio (4)
    3.8
  • Gear Ratio (5)
    3.24
  • Gear Ratio (6)
    2.79
  • Final Drive Ratio
    2.2
• TECHNICAL SPECIFICATIONS

  add remove
  • Length (in)
    90
  • Width (in)
    36.3
  • Height (in)
    49.3
  • Wheelbase (in)
    64
  • Dry Weight (lbs)
    647
  • Wet Weight (lbs)
    670
  • GVWR (lbs)
    1160
  • Fuel Capacity (gal)
    4
  • Engine Displacement to Weight (cc)
    2.8
  • Ground Clearance (in)
    4.9
• WHEELS & TIRES

  add remove
  • Front Tire (Full Spec)
    Metzeler CRUISETEC™ 130/60 B19 (61H)
  • Rear Tire (Full Spec)
    Metzeler CRUISETEC™ 180/65 B16 (81H)
• Colour options

  add remove
  • Black Metallic
