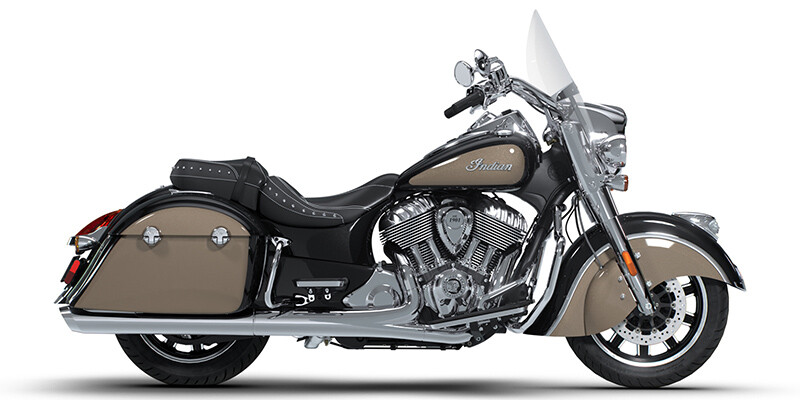

Springfield^®

Specifications

• ENGINE

  add remove
  • Engine Type
    V Twin
  • Cylinders
    2
  • Engine Stroke
    4-Stroke
  • Torque (Ft Lbs)
    119
  • Torque (Nm)
    161.6
  • Valves
    4
  • Valve Configuration
    OHV - Pushrod
  • Bore (in)
    4.06
  • Stroke (in)
    4.45
  • Displacement (cc)
    1890
  • Compression Ratio
    11:1
  • Torque RPM
    3000
  • Fuel Injector Size (mm)
    54
  • Horsepower (bhp)
    92
• TRANSMISSION

  add remove
  • Number Of Speeds
    6
  • Gear Ratio (1)
    9.4
  • Gear Ratio (2)
    6.4
  • Gear Ratio (3)
    4.8
  • Gear Ratio (4)
    3.8
  • Gear Ratio (5)
    3.24
  • Gear Ratio (6)
    2.8
  • Final Drive Ratio
    2.2
• TECHNICAL SPECIFICATIONS

  add remove
  • Length (in)
    101.7
  • Width (in)
    42.5
  • Height (in)
    56.6
  • Wheelbase (in)
    67
  • Dry Weight (lbs)
    795
  • Wet Weight (lbs)
    827
  • GVWR (lbs)
    1385
  • Fuel Capacity (gal)
    5.5
  • Engine Displacement to Weight (cc)
    2.27
  • Ground Clearance (in)
    5.6
• WHEELS & TIRES

  add remove
  • Front Tire (Full Spec)
    Metzeler CRUISETEC™™ 130/80B17 65H
  • Rear Tire (Full Spec)
    Metzeler CRUISETEC™™ 180/60R 16 80H
• Colour options

  add remove
  • Nara Bronze Metallic / Black Metallic
  • Sunset Red Metallic / Silver Quartz Metallic
