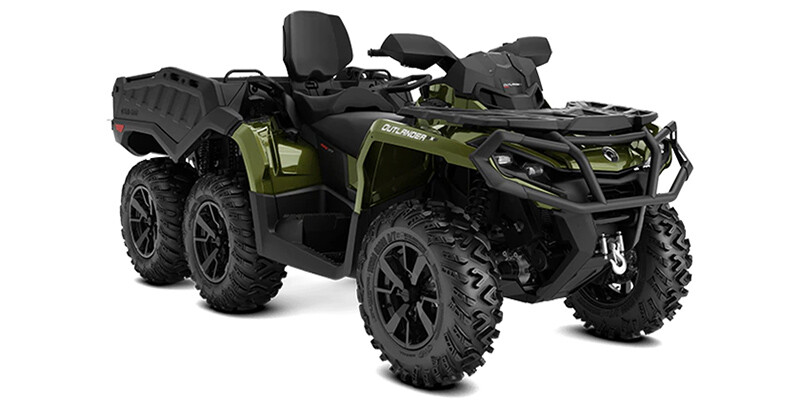

Outlander^™ MAX 6x6 XT^™ 1000

Specifications

• ENGINE

  add remove
  • Engine
    Standard
  • Engine Brand Name
    Rotax®
  • Engine Type
    V Twin
  • Cylinders
    2
  • Engine Stroke
    4-Stroke
  • Cooling
    Liquid
  • Valves
    8
  • Valve Configuration
    SOHC
  • Bore (in)
    3.59
  • Stroke (in)
    2.95
  • Displacement (cc)
    976
  • Starter
    Electric
  • Carburetion Type
    Fuel Injected
  • Horsepower (bhp)
    82
• SUSPENSION

  add remove
  • Front Suspension Type
    Double A-Arm
  • Front Travel (in)
    9.2
  • Rear Suspension Brand Name
    Trailing Torsional Independent (TTI)
  • Rear Suspension Type
    Independent
  • Rear Travel (in)
    9.9
  • Number Rear Shock Absorbers
    2
  • Front Stabilizer Bar
    Yes
  • Front Suspension
    Standard
  • Rear Suspension
    Standard
• BRAKES

  add remove
  • Front Brake Type
    Dual Hydraulic Disc
  • Rear Brake Type
    Dual Hydraulic Disc
  • Front Brake Diameter (in)
    8.4
  • Rear Brake Diameter (in)
    8.4
• Technical Specifications

  add remove
  • Length (mm)
    3170
  • Width (in)
    48.5
  • Height (in)
    55.3
  • Wheelbase (in)
    90
  • Ground Clearance (in)
    11
  • Dry Weight (lbs)
    1170
  • Towing Capacity (lbs)
    1650
  • Fuel Capacity (gal)
    5.4
  • Engine Displacement to Weight (cc)
    0.83
• Wheels & tyres

  add remove
  • Front Tire Diameter (in)
    26
  • Rear Tire Diameter (in)
    26
  • Tire Brand
    ITP
  • Front Tire Width
    8
  • Front Wheel Diameter
    14
  • Rear Tire Width
    10
  • Rear Wheel Diameter
    14
  • Front Tire (Full Spec)
    ITP Terracross 26 X 8-14
  • Rear Tire (Full Spec)
    ITP Terracross 26 X 10-14
• Colour options

  add remove
  • Boreal Green
