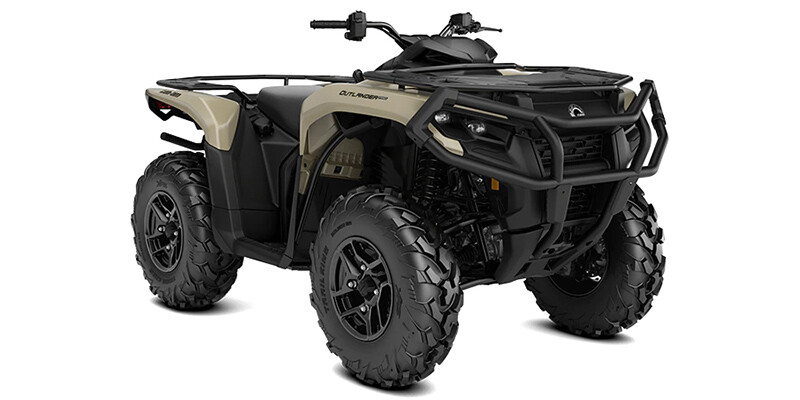

Outlander^™ Pro XU HD5

Specifications

• ENGINE

  add remove
  • Engine
    Standard
  • Engine Brand Name
    Rotax®
  • Engine Type
    Single-Cylinder
  • Cylinders
    1
  • Engine Stroke
    4-Stroke
  • Torque (Ft Lbs)
    37
  • Cooling
    Liquid
  • Valves
    4
  • Valve Configuration
    SOHC
  • Displacement (cc)
    650
  • Starter
    Electric
  • Carburetion Type
    Fuel Injected
  • Horsepower (bhp)
    40
• SUSPENSION

  add remove
  • Front Suspension Type
    Double A-Arm
  • Front Travel (in)
    9.8
  • Rear Suspension Type
    Independent Double A-Arm
  • Rear Travel (in)
    10.3
  • Number Rear Shock Absorbers
    2
  • Front Suspension
    Standard
  • Rear Suspension
    Standard
• BRAKES

  add remove
  • Front Brake Type
    Dual Hydraulic Disc
  • Rear Brake Type
    Hydraulic Disc
  • Front Brake Diameter (in)
    8.4
  • Rear Brake Diameter (in)
    8.4
• Technical Specifications

  add remove
  • Length (mm)
    2284
  • Width (in)
    48.8
  • Height (in)
    48.2
  • Wheelbase (in)
    53
  • Ground Clearance (in)
    13
  • Dry Weight (lbs)
    816
  • Towing Capacity (lbs)
    1830
  • Fuel Capacity (gal)
    5.1
  • Storage Capacity (cuft)
    1.4
  • Engine Displacement to Weight (cc)
    0.8
  • Storage Capacity (gal)
    9
• Wheels & tyres

  add remove
  • Front Tire Diameter (in)
    26
  • Rear Tire Diameter (in)
    26
  • Front Tire Width
    8
  • Front Wheel Diameter
    12
  • Rear Tire Width
    10
  • Rear Wheel Diameter
    12
  • Front Tire (Full Spec)
    XPS Trail King 26 X 8-12
  • Rear Tire (Full Spec)
    XPS Trail King 26 X 10-12
• Colour options

  add remove
  • Desert Tan
  • Compass Green
