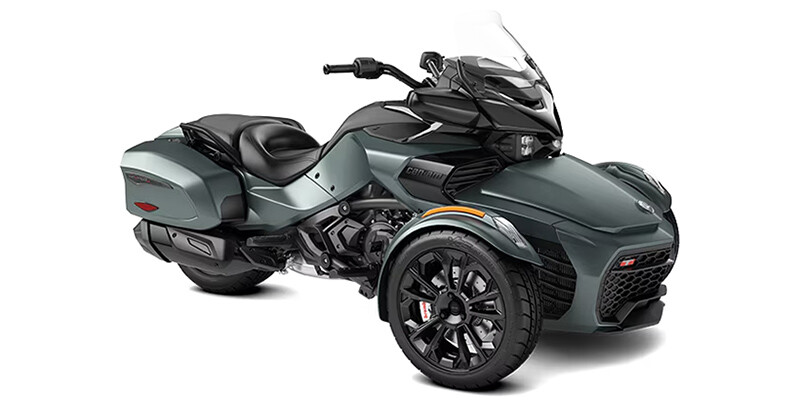

Spyder F3-T

Specifications

• ENGINE

  add remove
  • Cylinders
    3
  • Engine Stroke
    4-Stroke
  • Horsepower (bhp)
    115
  • Torque (Ft Lbs)
    96
  • Torque RPM
    5000
  • Bore (mm)
    84
  • Stroke (mm)
    80
  • Displacement (cc)
    1330
  • Compression Ratio
    12.2:1
• TRANSMISSION

  add remove
  • Transmission Type
    Manual / Automatic Clutch
  • Number Of Speeds
    6
  • Primary Drive (Rear Wheel)
    Belt
  • Reverse
    Yes
  • Gear Ratio (1)
    2.47
  • Gear Ratio (2)
    1.88
  • Gear Ratio (3)
    1.52
  • Gear Ratio (4)
    1.27
  • Gear Ratio (5)
    1.07
  • Gear Ratio (6)
    0.91
• TECHNICAL SPECIFICATIONS

  add remove
  • Length (in)
    102.2
  • Width (in)
    58.9
  • Height (in)
    48.9
  • Wheelbase (in)
    67.3
  • Ground Clearance (in)
    4.5
  • Dry Weight (lbs)
    948
  • Payload Capacity (lbs)
    439
  • GVWR (lbs)
    1387
  • Fuel Capacity (gal)
    7.1
  • Storage Capacity (cuft)
    3.2
  • Storage Capacity (l)
    79.5
  • Engine Displacement to Weight (cc)
    1.4
  • Towing Capacity (lbs)
    400
• SUSPENSION

  add remove
  • Front Suspension Type
    Independent Double A-Arm
  • Front Travel (in)
    5.1
  • Rear Suspension Type
    Twin Sided Swing Arm
  • Rear Travel (in)
    5.2
  • Number Rear Shock Absorbers
    1
  • Front Suspension Brand Name
    Sachs
  • Rear Suspension Brand Name
    Sachs
• WHEELS & TIRES

  add remove
  • Front Tire Width
    165
  • Front Tire Aspect Ratio
    55
  • Front Wheel Diameter
    15
  • Rear Tire Width
    225
  • Rear Tire Aspect Ratio
    50
  • Rear Wheel Diameter
    15
  • Front Tire (Full Spec)
    XPS Roadster K165/55 R15 69H
  • Rear Tire (Full Spec)
    XPS Roadster K225/50 R15 84H
• BRAKES

  add remove
  • Front Brake Type
    Dual Hydraulic Disc
  • Front Brake Diameter (in)
    10.6
  • Rear Brake Type
    Hydraulic Disc
  • Rear Brake Diameter (in)
    10.6
• Colour options

  add remove
  • Mineral Blue
  • Pearl White
