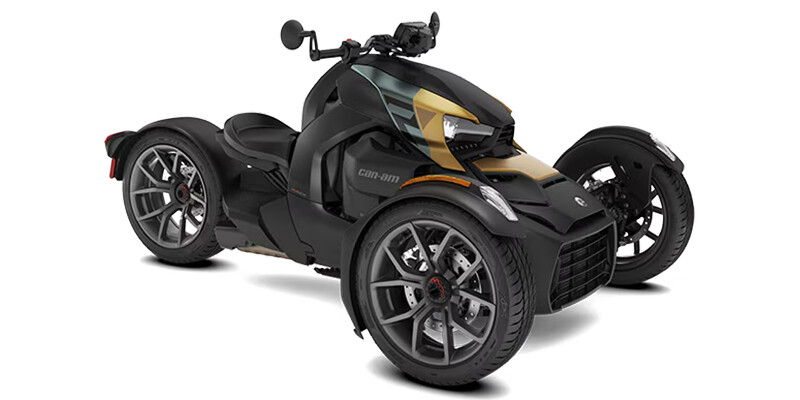

Ryker 900 ACE^™

Specifications

• ENGINE

  add remove
  • Cylinders
    3
  • Engine Stroke
    4-Stroke
  • Horsepower (bhp)
    82
  • Torque (Ft Lbs)
    58.3
  • Torque RPM
    6500
  • Bore (mm)
    74
  • Stroke (mm)
    69.7
  • Displacement (cc)
    900
  • Compression Ratio
    11:1
• TRANSMISSION

  add remove
  • Transmission Type
    Continuously Variable (CVT)
  • Primary Drive (Rear Wheel)
    Shaft
  • Reverse
    Yes
• TECHNICAL SPECIFICATIONS

  add remove
  • Length (in)
    92.6
  • Width (in)
    59.9
  • Height (in)
    41.7
  • Wheelbase (in)
    67.3
  • Ground Clearance (in)
    3.8
  • Dry Weight (lbs)
    616
  • Payload Capacity (lbs)
    449.7
  • Fuel Capacity (gal)
    5.3
  • Storage Capacity (cuft)
    0.2
  • Storage Capacity (l)
    7
  • Engine Displacement to Weight (cc)
    1.146
• SUSPENSION

  add remove
  • Front Suspension Type
    Double-Wishbone
  • Front Travel (in)
    5.4
  • Rear Suspension Type
    Single Sided Swing Arm
  • Rear Travel (in)
    5.7
  • Number Rear Shock Absorbers
    1
  • Front Suspension Brand Name
    Sachs
  • Rear Suspension Brand Name
    Sachs
• WHEELS & TIRES

  add remove
  • Front Tire Width
    145
  • Front Tire Aspect Ratio
    60
  • Front Wheel Diameter
    16
  • Rear Tire Width
    205
  • Rear Tire Aspect Ratio
    45
  • Rear Wheel Diameter
    16
  • Front Tire (Full Spec)
    XPS Ride 145/60 R16 66T
  • Rear Tire (Full Spec)
    XPS Ride 205/45 R16 77T
• BRAKES

  add remove
  • Front Brake Type
    Dual Hydraulic Disc
  • Front Brake Diameter (in)
    10.6
  • Rear Brake Type
    Hydraulic Disc
  • Rear Brake Diameter (in)
    8.7
• Colour options

  add remove
  • Atlantis Gold
  • Cyber Orange
  • Heritage White IV
  • Heritage Yellow Limited Edition
  • Icepop Blue
  • Lemon Twist
  • Moka Plaid
  • Sand Storm Limited Edition
  • Sonic Silver
  • Urban Blue
  • Liquid Gold
  • Mint Freeze
  • Crimson Rush
  • Peachy Frenzy
  • Cotton Candy
