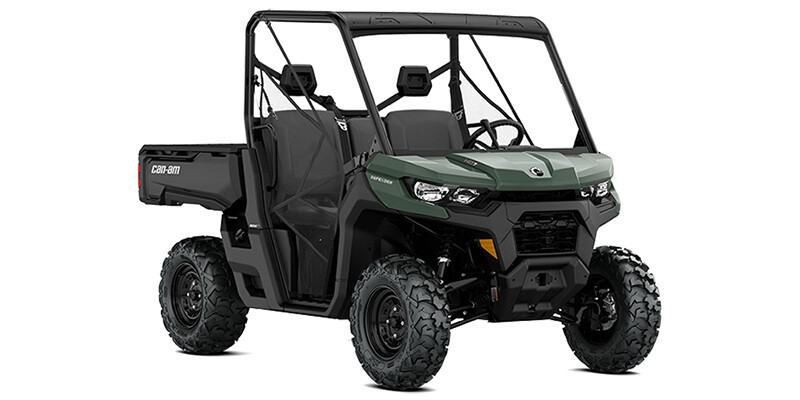

Defender HD7

Specifications

• ENGINE

  add remove
  • Engine Type
    Single-Cylinder
  • Cylinders
    1
  • Engine Stroke
    4-Stroke
  • Horsepower (bhp)
    52
  • Valves
    4
  • Valves Per Cylinder
    4
  • Displacement (cc)
    650
  • Horsepower RPM
    7500
  • Torque (Ft Lbs)
    42
• BRAKES

  add remove
  • Front Brake Type
    Dual Hydraulic Disc
  • Rear Brake Type
    Dual Hydraulic Disc
  • Front Brake Diameter (in)
    8.7
  • Rear Brake Diameter (in)
    8.7
• TECHNICAL SPECIFICATIONS

  add remove
  • Width (in)
    62
  • Height (in)
    76
  • Wheelbase (in)
    83
  • Ground Clearance (in)
    11
  • Dry Weight (lbs)
    1482
  • Towing Capacity (lbs)
    2500
  • Fuel Capacity (gal)
    10.6
  • Engine Displacement to Weight (cc)
    0.44
  • Payload Capacity (lbs)
    1500
  • Storage Capacity (gal)
    3.1
• SUSPENSION

  add remove
  • Front Suspension Type
    Independent Double A-Arm
  • Front Travel (in)
    10
  • Rear Travel (in)
    10
  • Number Rear Shock Absorbers
    2
• WHEELS & TIRES

  add remove
  • Front Tire Diameter (in)
    27
  • Rear Tire Diameter (in)
    27
  • Tread Type
    Knobby
  • Front Tire Width
    9
  • Front Wheel Diameter
    14
  • Rear Tire Width
    11
  • Rear Wheel Diameter
    14
  • Front Tire (Full Spec)
    XPS Trail Force 27 x 9-14
  • Rear Tire (Full Spec)
    XPS Trail Force 27 x 11-14
• Colour options

  add remove
  • Compass Green
