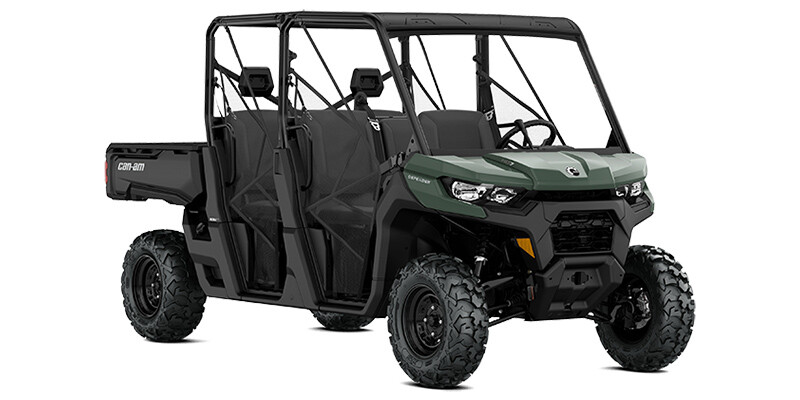

Defender MAX HD9

Specifications

• ENGINE

  add remove
  • Engine Type
    V Twin
  • Cylinders
    2
  • Engine Stroke
    4-Stroke
  • Horsepower (bhp)
    65
  • Valves
    8
  • Valves Per Cylinder
    4
  • Bore (in)
    3.58
  • Stroke (in)
    2.42
  • Displacement (cc)
    976
  • Torque (Ft Lbs)
    59
• BRAKES

  add remove
  • Front Brake Type
    Dual Hydraulic Disc
  • Rear Brake Type
    Dual Hydraulic Disc
  • Front Brake Diameter (in)
    8.7
  • Rear Brake Diameter (in)
    8.7
• TECHNICAL SPECIFICATIONS

  add remove
  • Width (in)
    63.5
  • Height (in)
    76
  • Wheelbase (in)
    115.5
  • Ground Clearance (in)
    11
  • Dry Weight (lbs)
    1789
  • Towing Capacity (lbs)
    2500
  • Fuel Capacity (gal)
    10.6
  • Engine Displacement to Weight (cc)
    0.55
  • Payload Capacity (lbs)
    1700
  • Storage Capacity (gal)
    3.1
• SUSPENSION

  add remove
  • Front Suspension Type
    Double A-Arm
  • Front Travel (in)
    10
  • Rear Travel (in)
    10
  • Number Rear Shock Absorbers
    2
• WHEELS & TIRES

  add remove
  • Front Tire Diameter (in)
    27
  • Rear Tire Diameter (in)
    27
  • Tread Type
    Knobby
  • Front Tire Width
    9
  • Front Wheel Diameter
    14
  • Rear Tire Width
    11
  • Rear Wheel Diameter
    14
  • Front Tire (Full Spec)
    XPS Trail Force 27 x 9-14
  • Rear Tire (Full Spec)
    XPS Trail Force 27 x 11-14
• Colour options

  add remove
  • Compass Green
