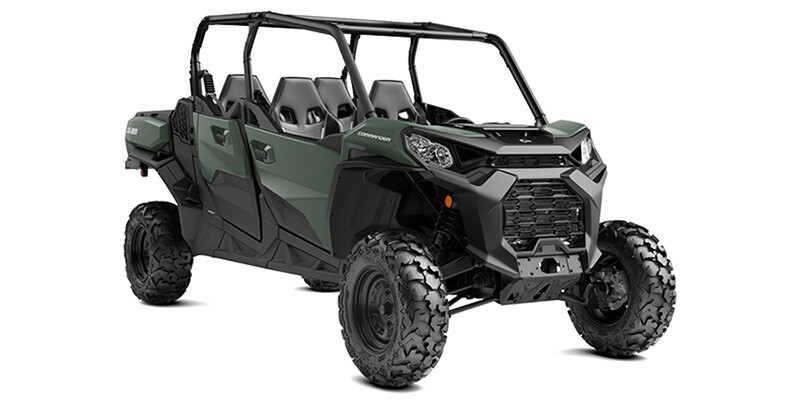

Commander MAX DPS^™ 700

Specifications

• ENGINE

  add remove
  • Engine Type
    Single-Cylinder
  • Cylinders
    1
  • Engine Stroke
    4-Stroke
  • Horsepower (bhp)
    52
  • Valves
    4
  • Valves Per Cylinder
    4
  • Displacement (cc)
    650
  • Torque (Ft Lbs)
    42
• BRAKES

  add remove
  • Front Brake Type
    Dual Hydraulic Disc
  • Rear Brake Type
    Dual Hydraulic Disc
• TECHNICAL SPECIFICATIONS

  add remove
  • Width (in)
    62
  • Height (in)
    73
  • Wheelbase (in)
    120.6
  • Ground Clearance (in)
    12.5
  • Dry Weight (lbs)
    1892
  • Towing Capacity (lbs)
    2000
  • Fuel Capacity (gal)
    10
  • Engine Displacement to Weight (cc)
    0.34
  • Payload Capacity (lbs)
    1280
  • Storage Capacity (gal)
    8.5
• SUSPENSION

  add remove
  • Front Suspension Type
    Independent Double A-Arm
  • Front Travel (in)
    12.5
  • Rear Travel (in)
    13
  • Number Rear Shock Absorbers
    2
• WHEELS & TIRES

  add remove
  • Front Tire Diameter (in)
    27
  • Rear Tire Diameter (in)
    27
  • Tread Type
    Knobby
  • Front Tire Width
    9
  • Front Wheel Diameter
    14
  • Rear Tire Width
    11
  • Rear Wheel Diameter
    14
  • Front Tire (Full Spec)
    XPS Trail Force 27 x 9-14
  • Rear Tire (Full Spec)
    XPS Trail Force 27 x 11-14
• Colour options

  add remove
  • Compass Green
